Recessed Lights Wiring

Bulb Wattage	Max Bulbs per Channel Group	Max Bulbs per Cable
9W	2	4
10W	4	4
14W / 16W	1	2
20W	2	2

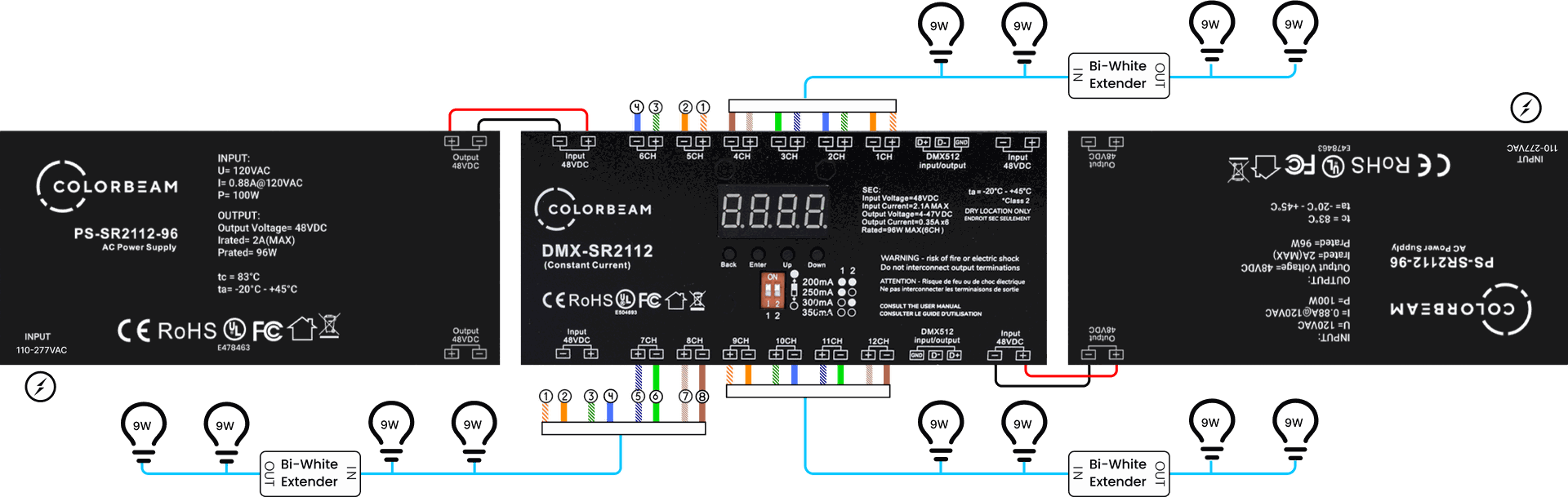

When connecting two PS-SR2112-96 units,

Connect one to the top and one to the bottom of the DMX-SR2112
Set the side switch on the DMX-SR2112 to “2 PS”

This ensures even current distribution and maintain UL certification.

Tunable White

All tunable (CCT) bulbs require two channels on a driver. The lower (odd number) channel controls the warm side of the chip and the higher (even number) channel controls the cool.

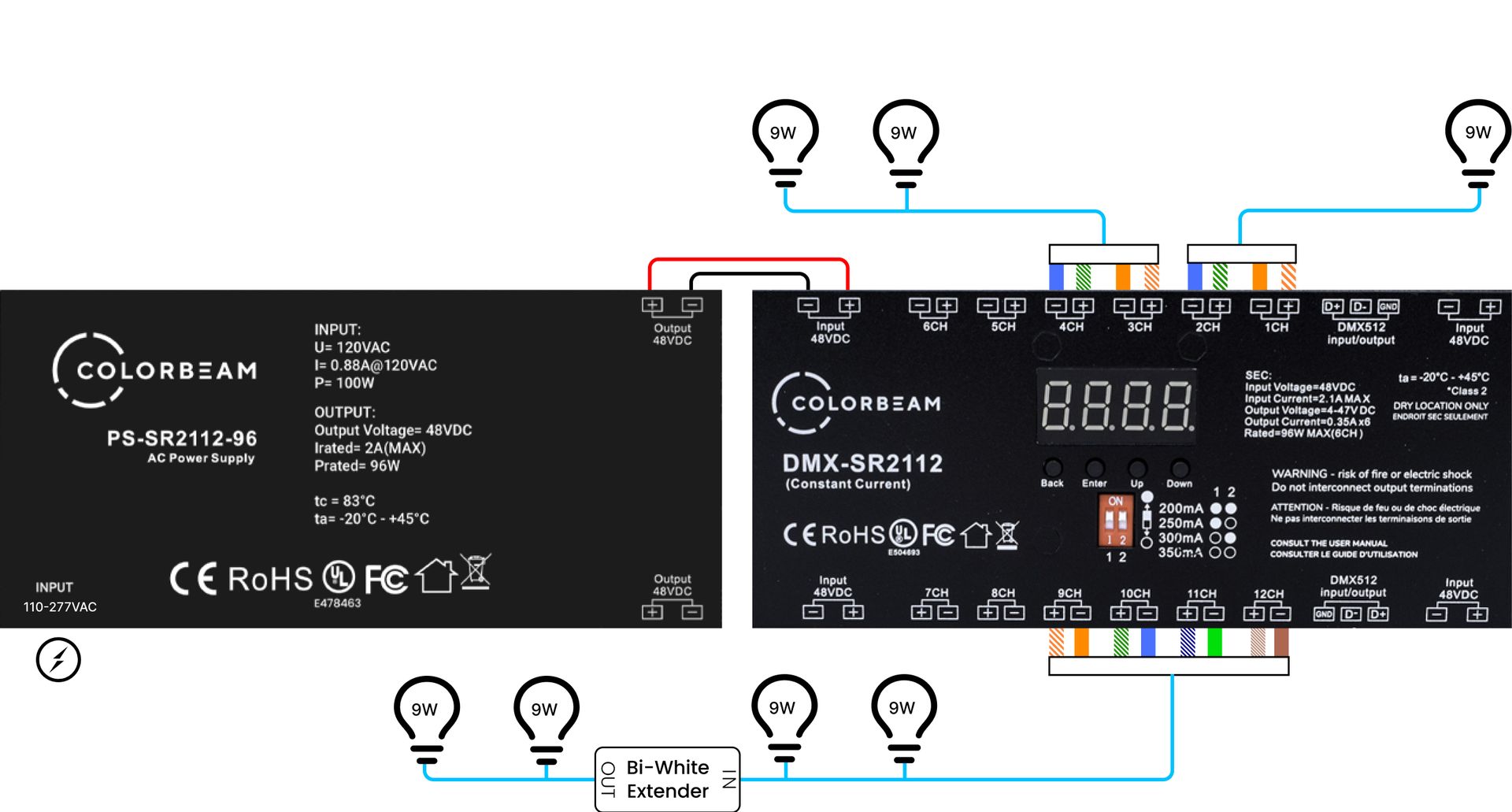

Rocket 9W

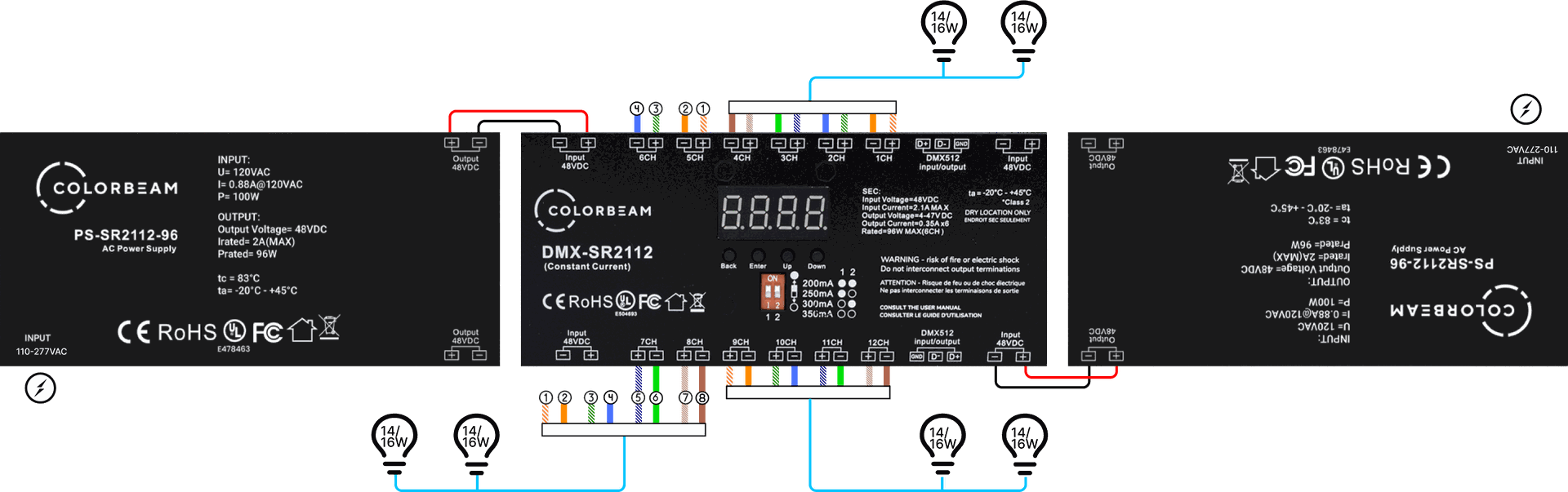

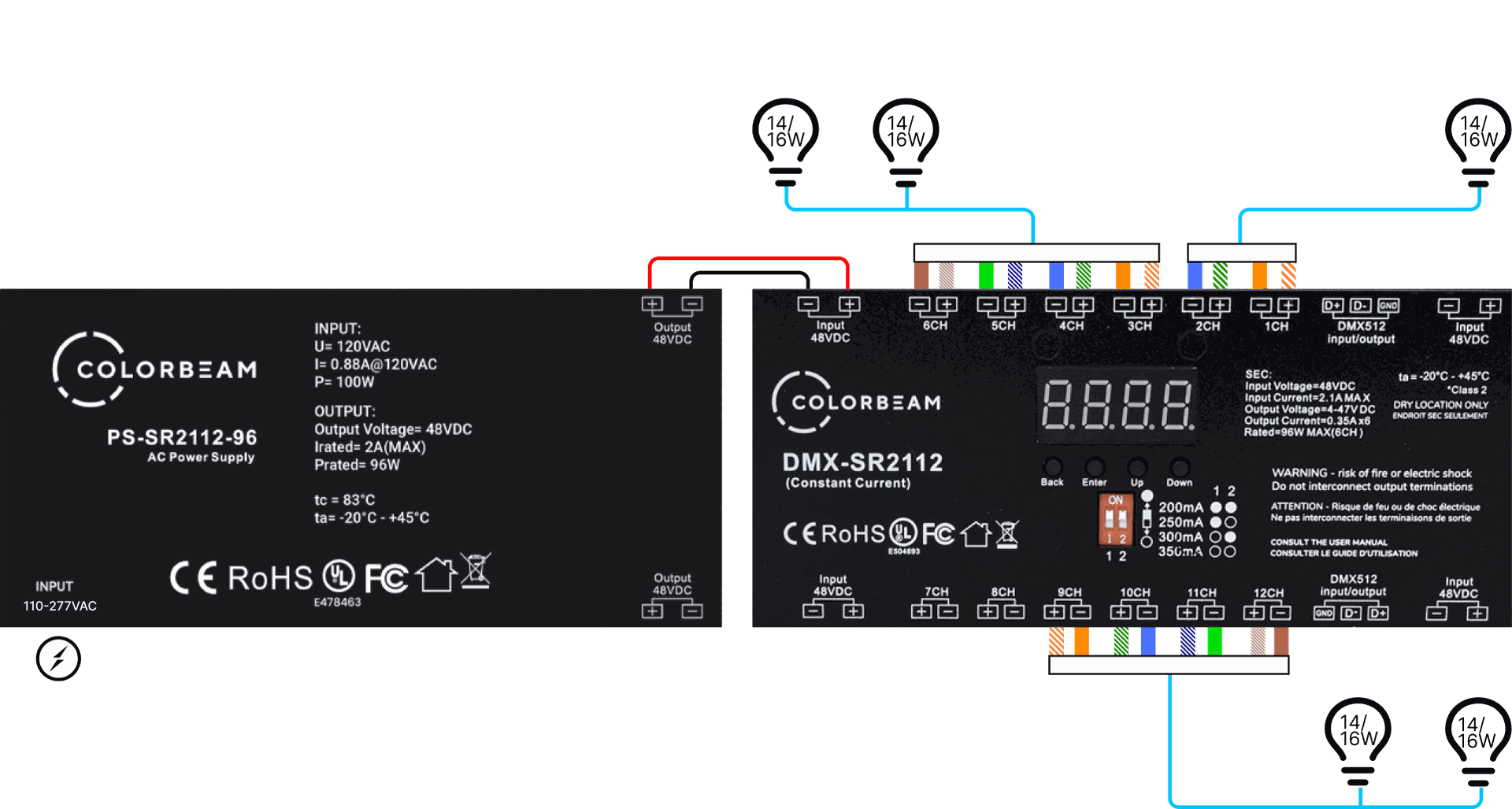

Bianca 14W/ 16W, Luna 14W, and Riva 16W

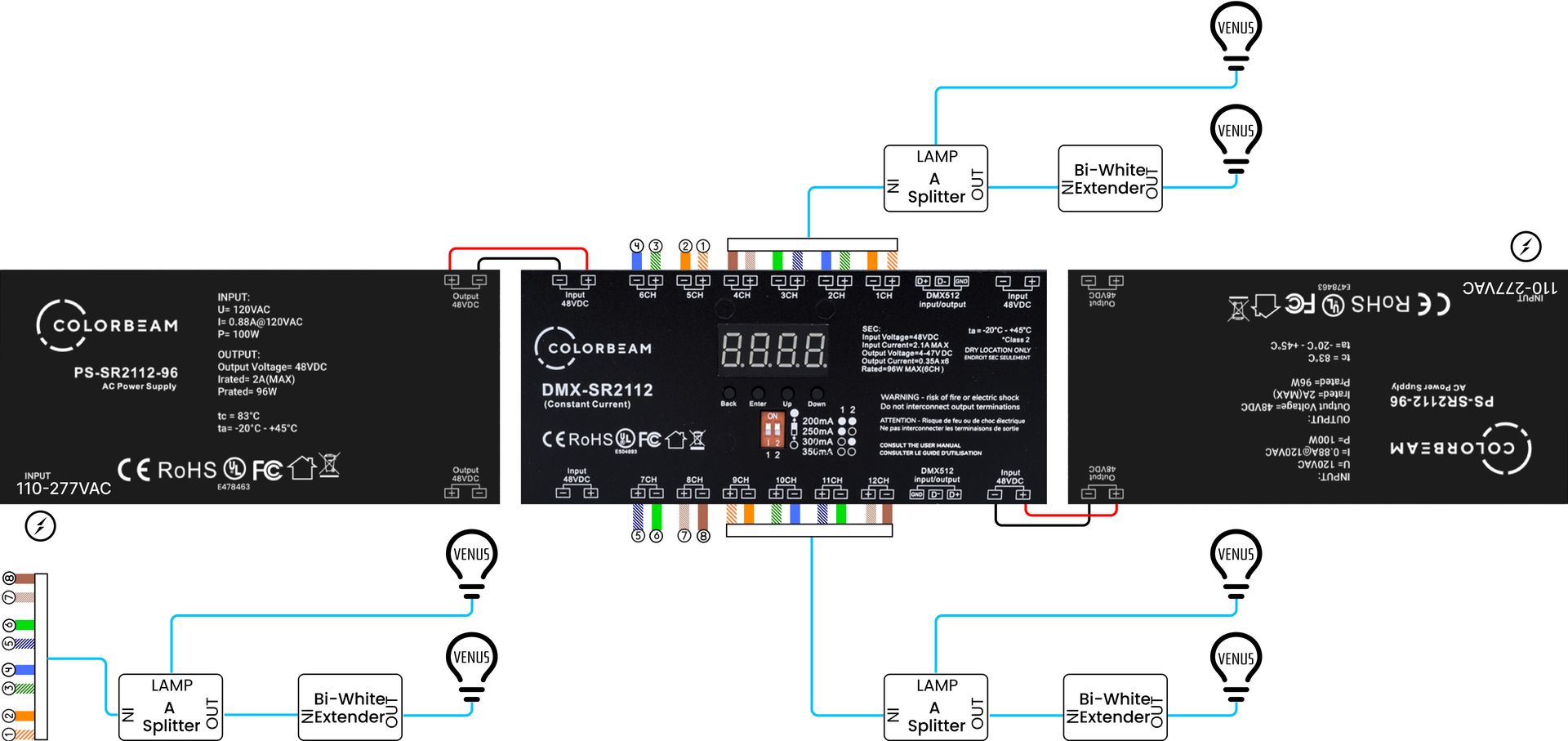

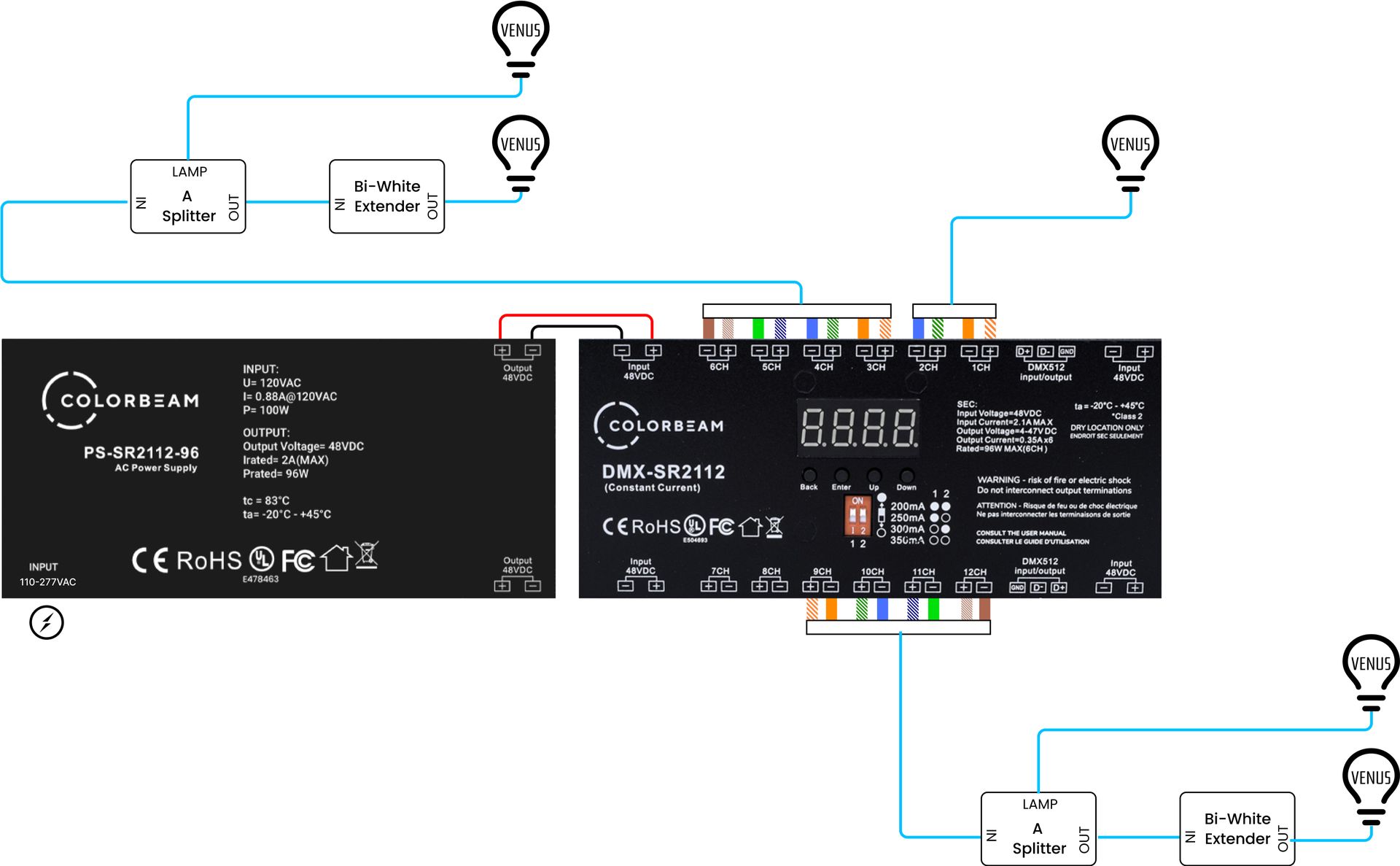

Venus 16W

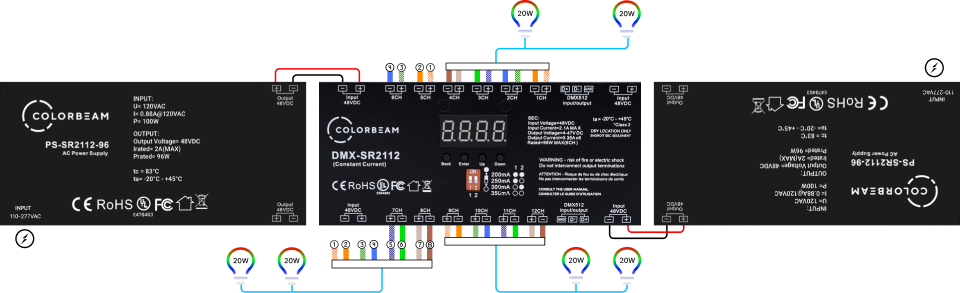

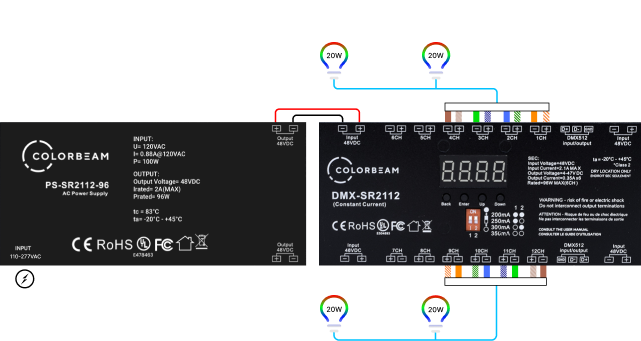

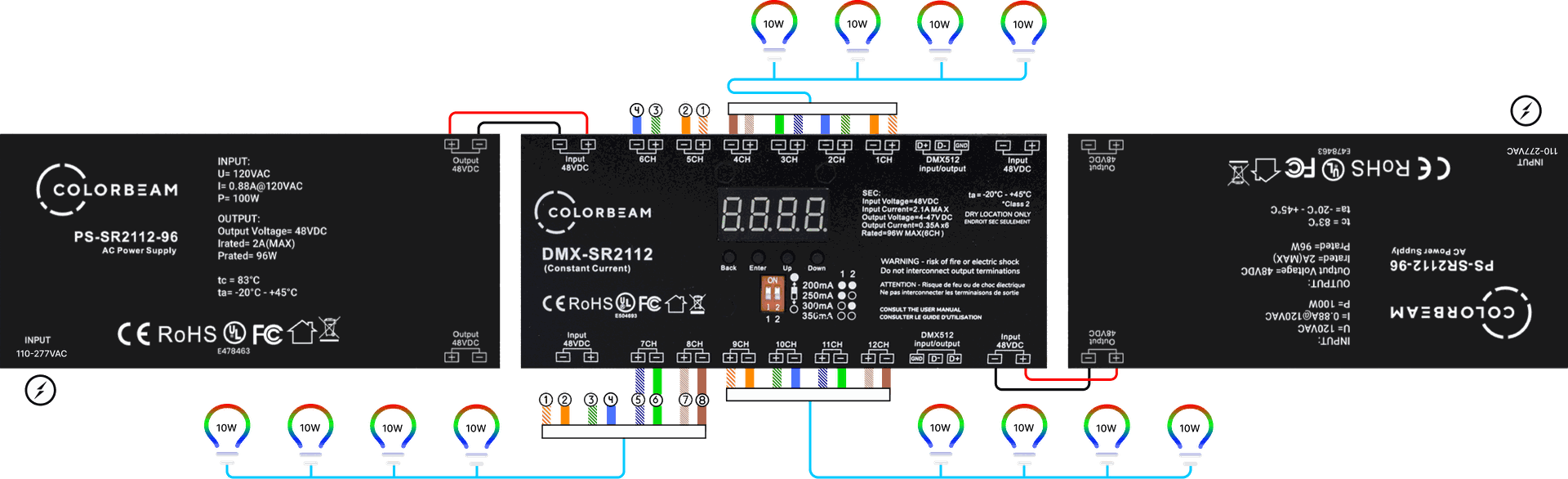

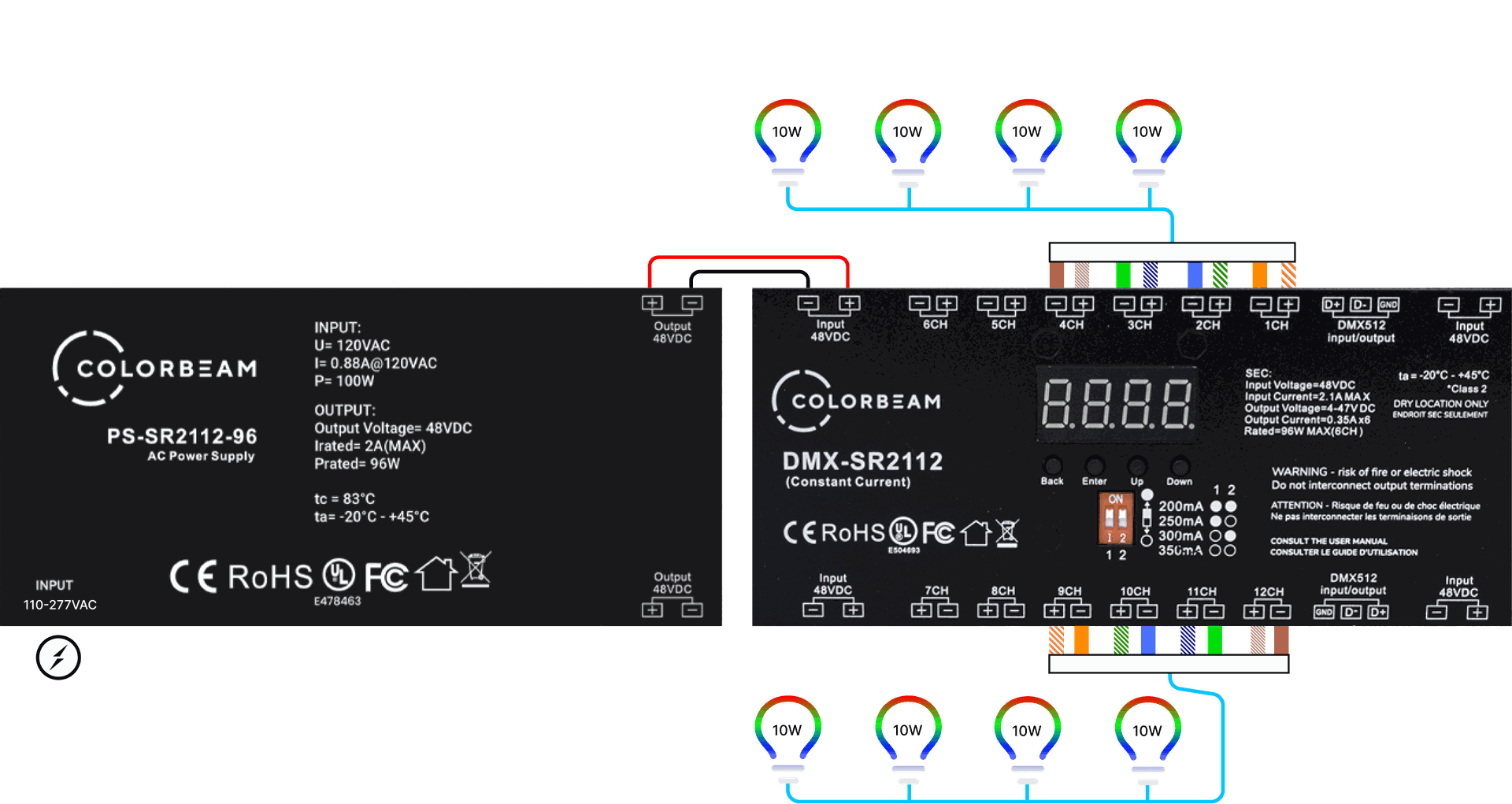

RGBW

RGBW bulbs require four channels on a driver, each controlling one color:

1st CH – red
2nd CH – green
3rd CH – blue
4th CH – white
