    LED TapesChart in FeetChart in Metres Lumens & Power Chart

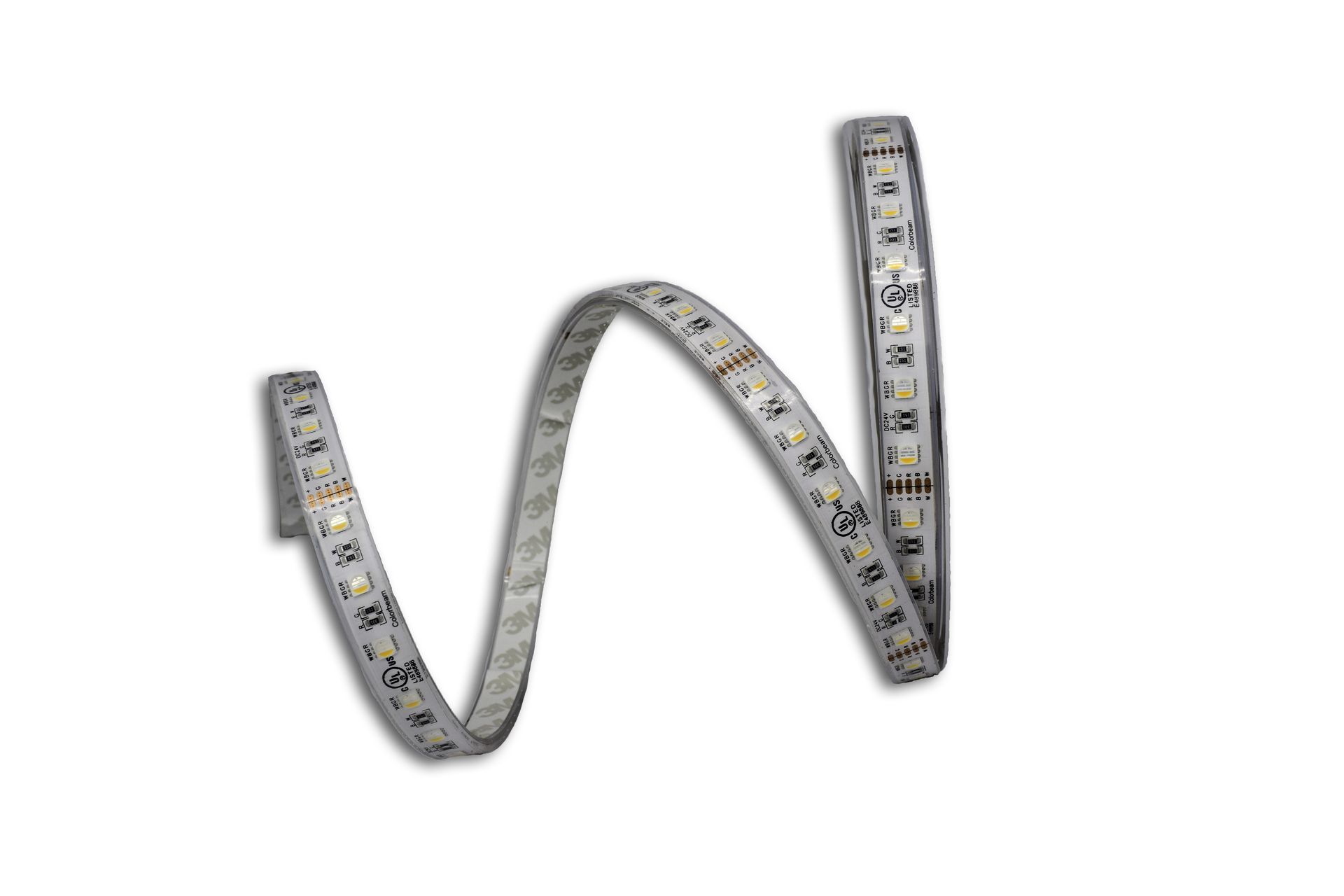

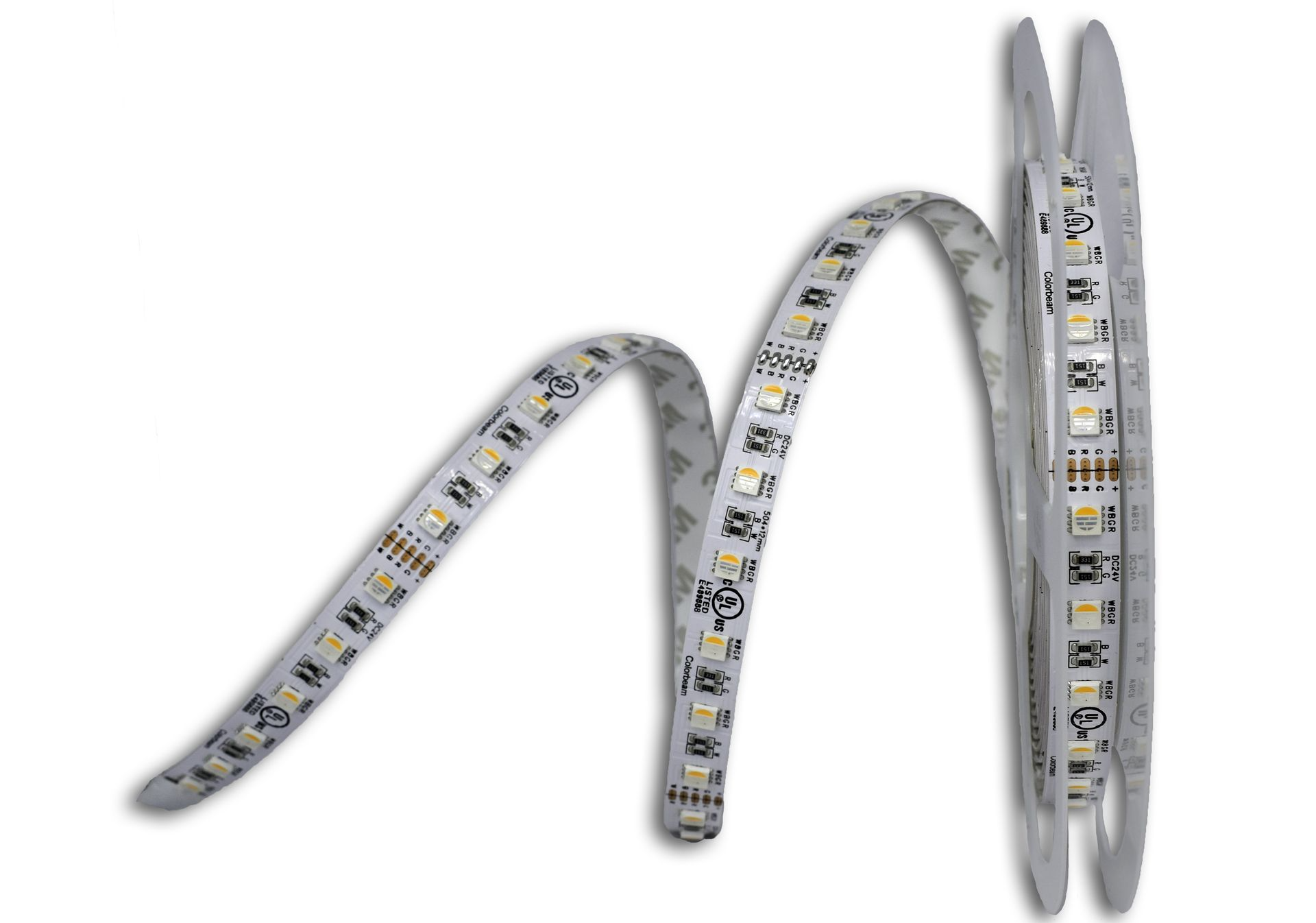

    Colorbeam offers programmable self-adhesive flexible LED tapes that are compact, bright, and energy-efficient. They are very versatile in all applications: residential, commercial, industrial, hospitality, etc.

    LED tapes are ideal to enhance and accent textures, architectural elements, artwork, walls, alcoves, cabinets, workstations, storefronts, stairs, railings, and stage décors, offering endless possibilities.

    Regular

    IP68 option

    IP68 option


    Options and Accessories:

    • The IP68 option is available for outdoor architectural lighting. Specify your preference during purchase.
    • Our compatible LED tape light tracks effectively dissipate heat, secure the tapes, and enhance their visual appeal.


    Chart in Feet

    TypeColor OutputLumens OutputPower Required
    TAPE-30-RGBRed, Blue, and Green187 Lm/ft2.2 Watts/Foot
    TAPE-60-RGBRed, Blue, and Green375 Lm/ft4.32 Watts/Foot
    TAPE-60-RGBWRed, Blue, Green, and White875 Lm/ft4.32 Watts/Foot
    TAPE-60-WWhite375-450 Lm/ft4.4 Watts/Foot

    Discontinued
    TAPE-60-W-UHP

    		White781 Lm/ft7.5 Watts/Foot
    TAPE-120-WWhite262-300 Lm/ft2.88 Watts/Foot
    TAPE-120-BITunable White262-300 Lm/ft2.88 Watts/Foot
    TAPE-180-RGBWWRed, Blue, Green and Tunable White334 Lm/ft4.57 Watts/Foot
    Discontinued
    TAPE-144-W-UHP    		White900 Lm/ft8 Watts/Foot
    TAPE-256-BITunable White323 Lm/ft5.85 Watts/Foot
    TAPE-240-RGBRed, Blue and Green229 Lm/ft2.92 Watts/Foot


    Chart in Metres

    TypeColor OutputLumens OutputPower Required
    TAPE-30-RGBRed, Blue, and Green600 Lm/M8.2 Watts/M
    TAPE-60-RGBRed, Blue, and Green1200 Lm/M14.4 Watts/M
    TAPE-60-RGBWRed, Blue, Green, and White2800 Lm/M (model description differs )14.4 Watts/M
    TAPE-60-WWhite1080 Lm/M14.4 Watts/M

    Discontinued
    TAPE-60-W-UHP

    		White2500 Lm/M25 Watts/M
    TAPE-120-WWhite1300 Lm/M14.4 Watts/M
    TAPE-120-BITunable White1190 Lm/M (model description differs)15.8 Watts/M
    TAPE-180-RGBWWRed, Blue, Green and Tunable White1095 Lm/M (model description differs)15.5 Watts/M
    Discontinued
    TAPE-144-W-UHP    		White2880 Lm/M27 Watts/M
    TAPE-256-BITunable White1530 Lm/M14.4 Watts/M
    TAPE-240-RGBRed, Blue and Green1920-2400 Lm/M26.5 Watts/M


    Lumens & Power Chart

    Blue text refers to GONIOPHOTOMETERS TEST from 2019 May
    Green text refers to SPECTRUM TEST from 2022 April
    Orange text refers to GONIOPHOTOMETERS TEST from 2022 May
    Pink text refers to Olympialed site

    Series

    Type


    Lumen Output (ft)

    Power (ft)

    Lumen Output (m)

    Power (m)

    TAPE-30

    RGB

    -

    97 lm/ft

    3 W/ft



    TAPE-60

    Single Color

    30K



    1096.7 lm/m

    14.3 W/m


    RGB

    -

    173 lm/ft

    4.6 W/ft




    RGBW

    RGB30K
    ​

    		RGBW: 198.6 lm/ft

    5.3 W/ft

    R: 130.5 123.6 lm/m;
    G: 281     303.3 lm/m;
    B: 53.1     57.8 lm/m;
    W: 289     315.2 lm/m;
    RGB: 460.8 lm/m;
    RGBW: 746     770.7 lm/m

    RGBW: 651.6 lm/m
    same tests between 2019 to 2022 differ 119 lm

    3.9 3.8 W/m; 3.4 3.8 W/m; 3.1 3.6 W/m;
    4.1     4.3 W/m;
    10.5 W/m;
    14.8     15.6 W/m
    17.4 W/m



    RGB30K-IP68​

    185 lm/ft

    5.3 W/ft




    NF15-RGBW

    RGB30K
    Cutting:  10cm/3.93in
    1 feet = 12 in



    		 R: 25 lm;
    G: 79 lm:
    B: 13 lm;
    30K: 115 lm;
    RGBW: 220 lm
    		17 W/m


    NF21-RGBW

    RGB30K
    Cutting:  10cm/3.93in



    R: 29 lm;
    G: 99 lm:
    B: 19 lm;
    30K: 134 lm;
    RGBW: 269 lm;

    17 W/m

    TAPE-70


    PX15-RGBW

    RGB30K
    Cutting:  10cm/3.93in



    R: 27 lm,
    G: 86 lm,
    B: 16 lm,
    30K: 95 lm
    RGBW: 216 lm

    18 W/m


    PX16-RGBW

    RGB30K
    Cutting:  10cm/3.93in



    R: 60 lm;
    G: 176 lm;
    B: 34 lm;
    30K: 193 lm;
    RGBW: 399 lm

    18 W/m

    TAPE-72

    NF16-RGBW

    RGB30K
    Cutting:      8.33cm/3.28in



    R: 13 lm;
    G: 150 lm:
    B: 24 lm;
    30K: 200 lm;
    RGBW: 480 lm

    17 W/m


    NF18-RGBW

    RGB30K
    Cutting:      8.33cm/3.28in



    R: 64 lm;
    G: 269 lm:
    B: 52 lm;
    30K: 332 lm;
    RGBW: 449 lm

    17 W/m

    TAPE-120

    Single Color

    IES not found






    CCT

    27K-65K



    27K: 542.91 lm

    8 W






    65K: 605.43 lm

    8.1 W






    27K+65K: 1133.6 lm

    16.20 W


    NF15-CCT

    1800K + 6500K
    Cutting:  10cm/3.93in



    260 +  296 lm

    12 W


    NF16-CCT

    1800K + 6500K
    Cutting:  10cm/3.93in



    280 + 304 lm

    12 W


    NF18-CCT

    1800K + 6500K
    Cutting: 10cm/3.93in



    340 + 400 lm

    12 W

    TAPE-180

    RGBWW




    R: 71.2 69.3 lm;
    G: 133.4     360.5 lm;
    B: 29.9     96.7 lm;
    27K: 414.5     433.3 lm;
    65K: 464.3     493.9 lm;
    RGB: 231.8 lm;
    27+65K: 876.3 lm;
    RGBWW: 1098.6 lm

    2.1 W;
    1.6 6.7 W;
    1.6 6.9 W;
    5.3 5.3 W;
    5.4 5.5 W;
    5.3 W;
    10.7 W;
    16.1 W

    TAPE-240

    RGB


    599.1 lm/ft

    16.1 W/ft

    1965.5 lm/m

    26.5 W/m
    52.8 W/m

    TAPE-256

    CCT

    27K-65K



    27K: 721.5 lm/m;
    65K: 810.9 lm/m;
    27K+67K: 1530.9 lm/m

    7 W/m
    7 W/m
    14.1 W/m
