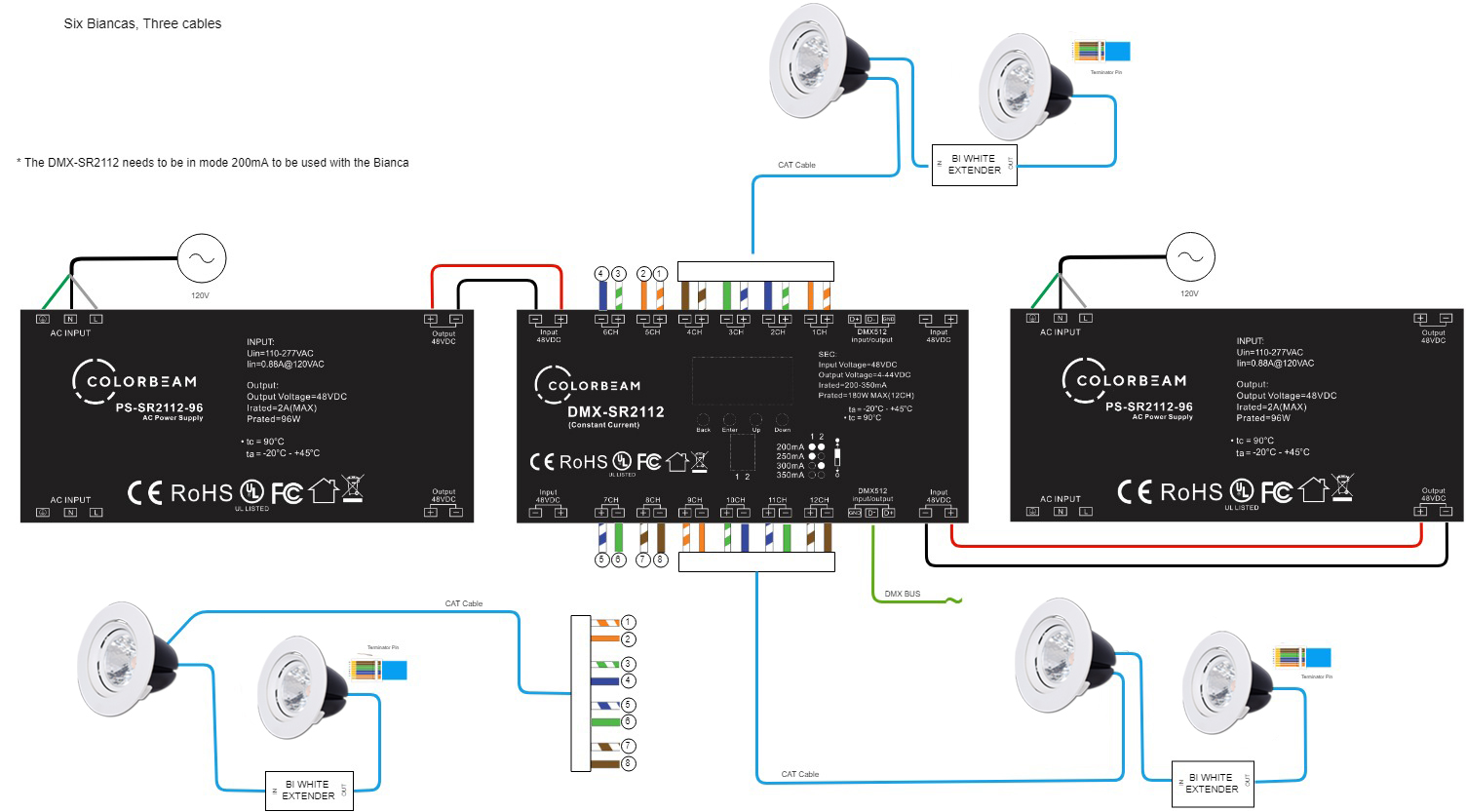

    Bianca Prior To Jan. 2023

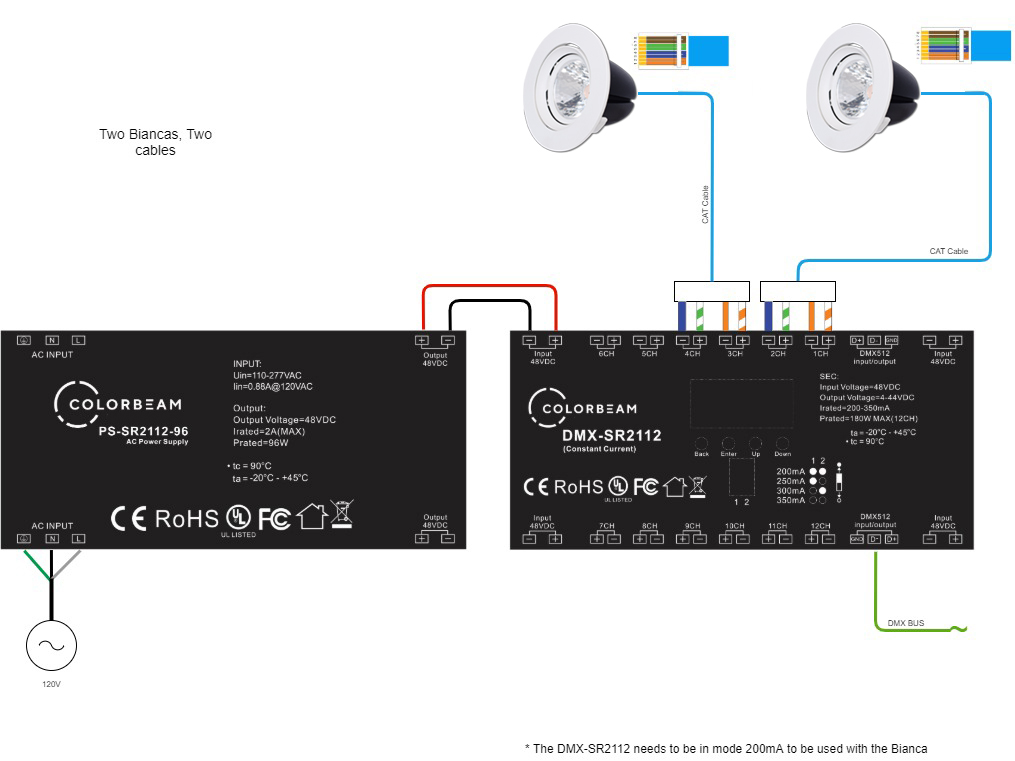

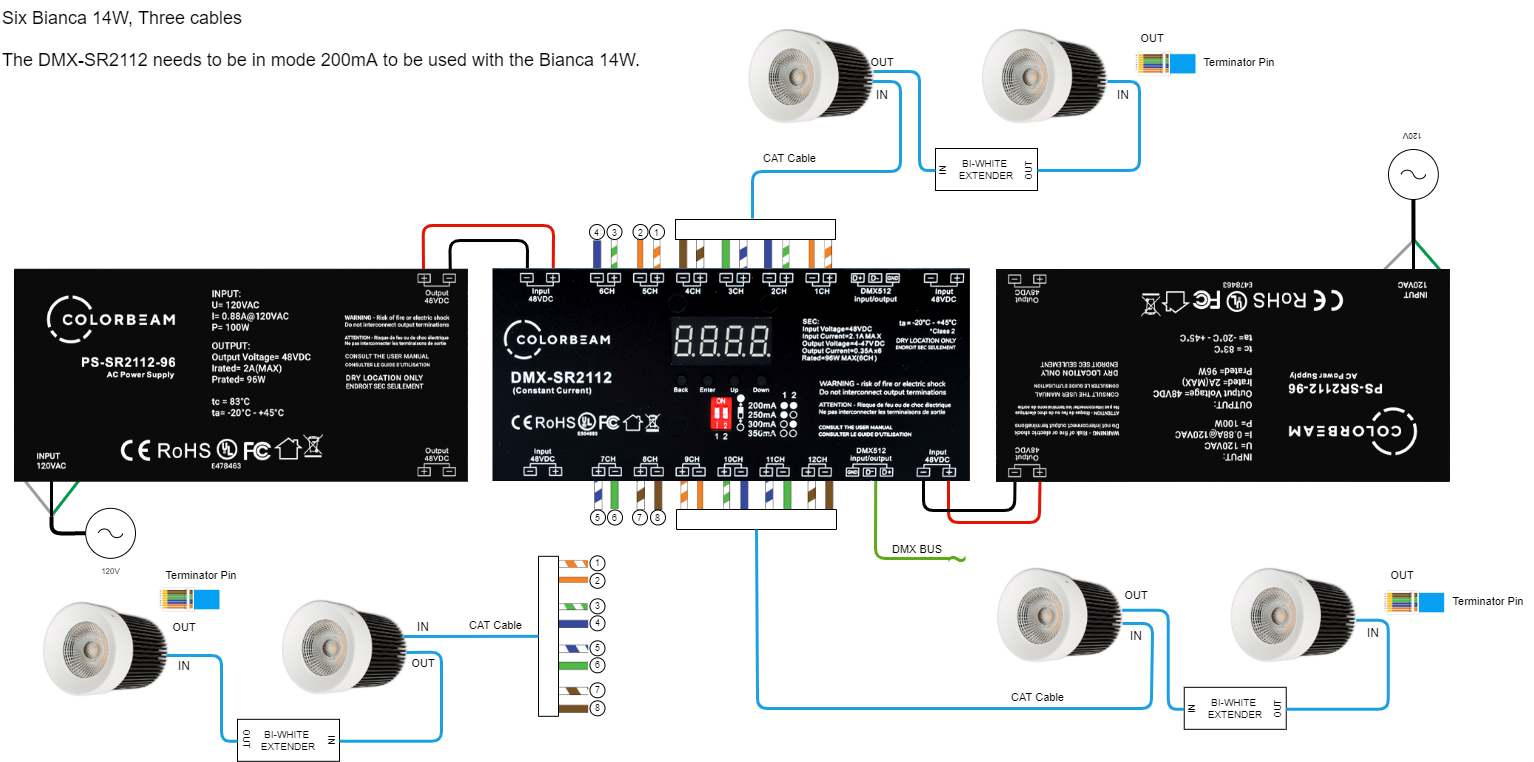

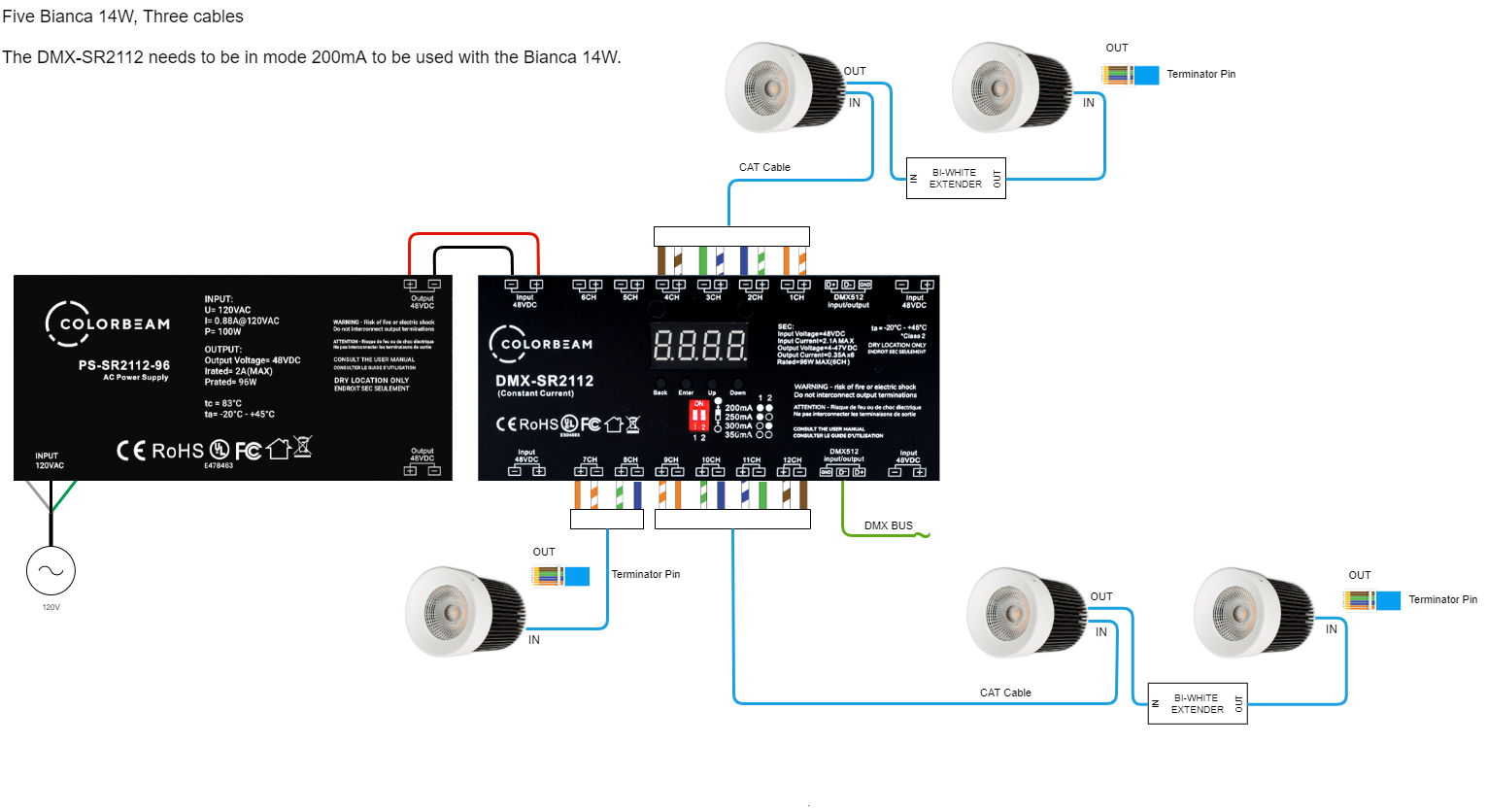

    Bianca 14W

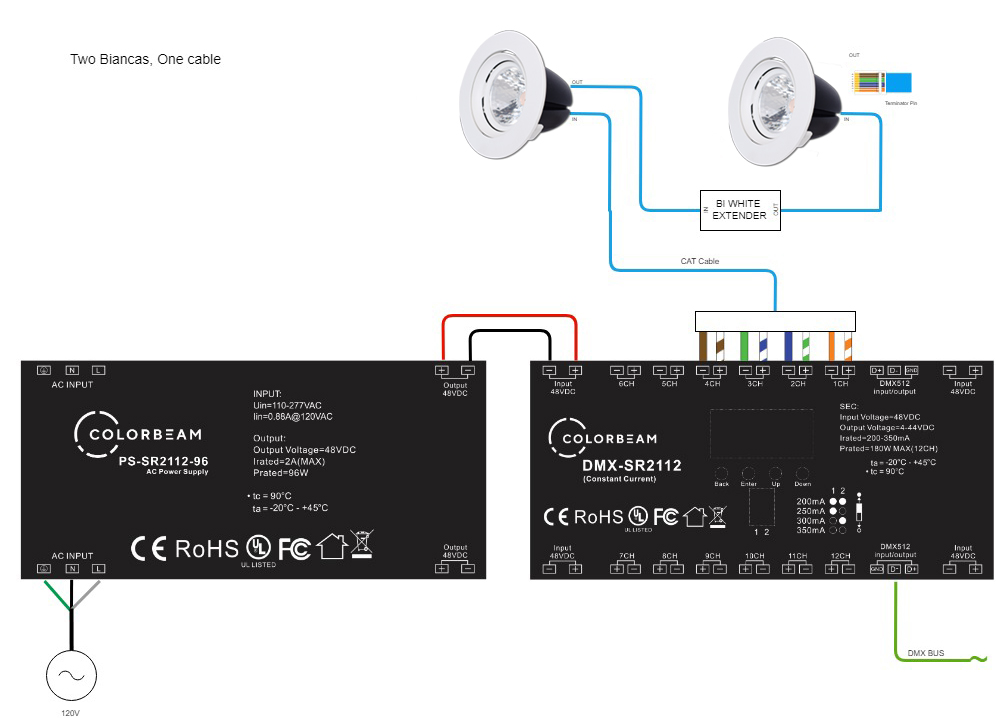

    Only a single Bianca can be powered for every 2 channels on a DMX-SR2112. A Bi-White Extender is required to power two Biancas with a cat cable.




    Bianca 16W

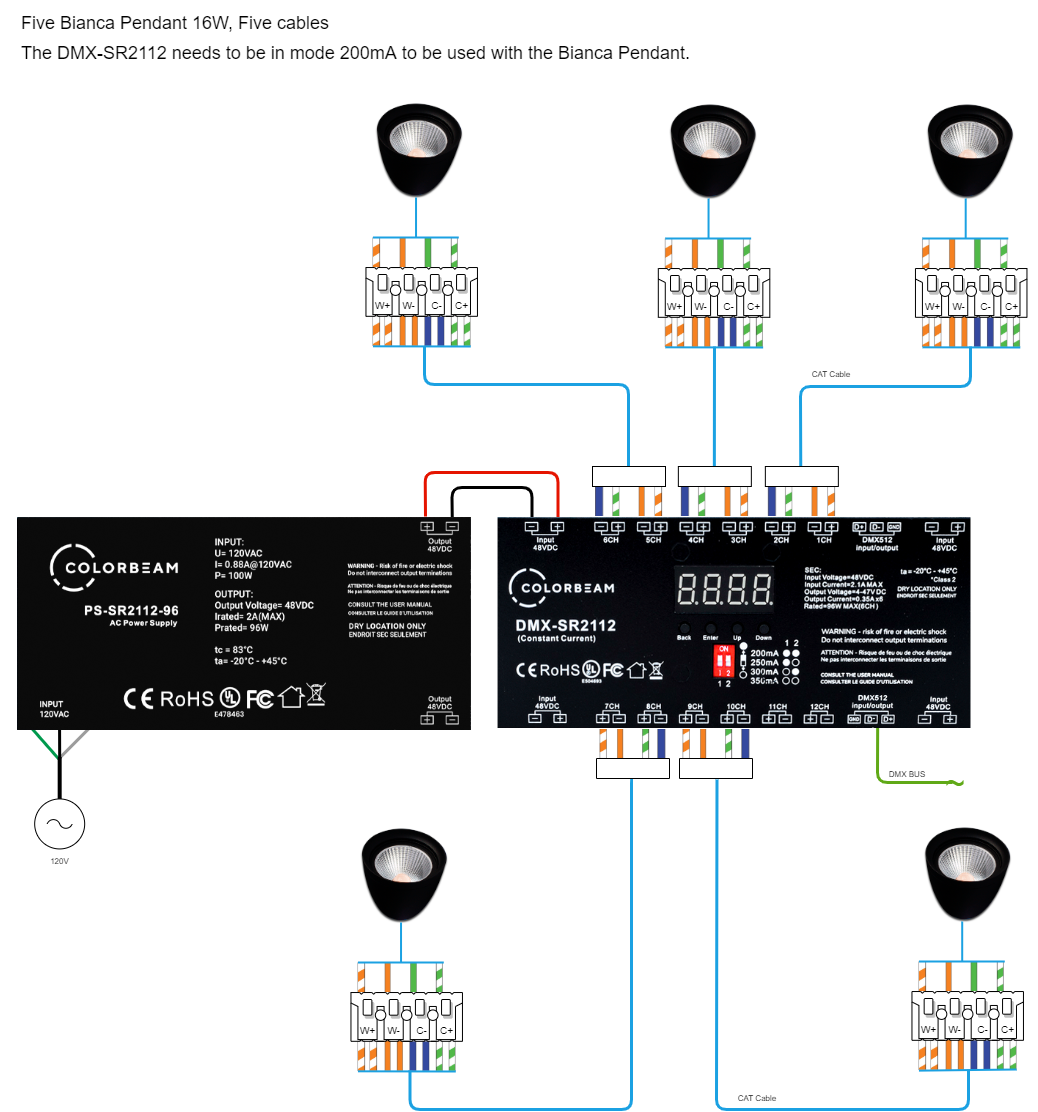

    Bianca Pendant 16W

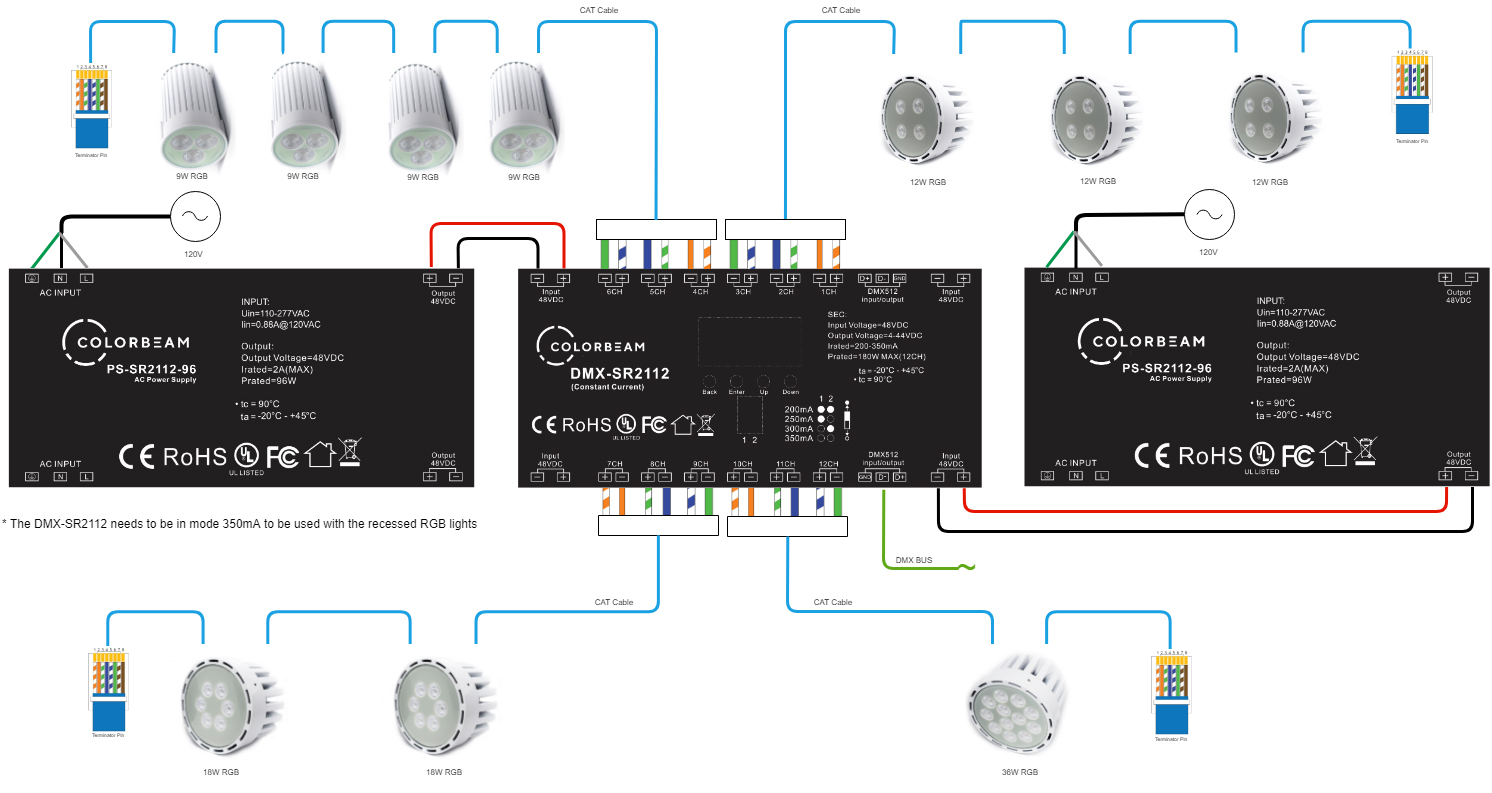

    RGB Indoor Lights

    Using DMX-2112

    The DMX-SR2112 must be set to 350mA for these lights.

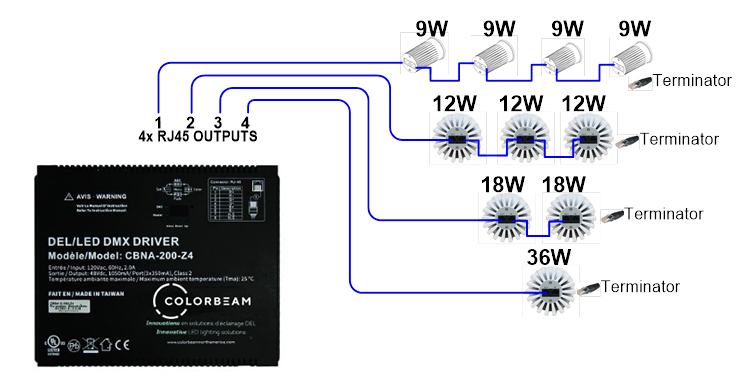

    Using CBNA-D-200-Z4
