    Balzo, Palma, and Tega are 48v outdoor luminaires that are compatible with the DMX-SR2112 driver and CAT cables.

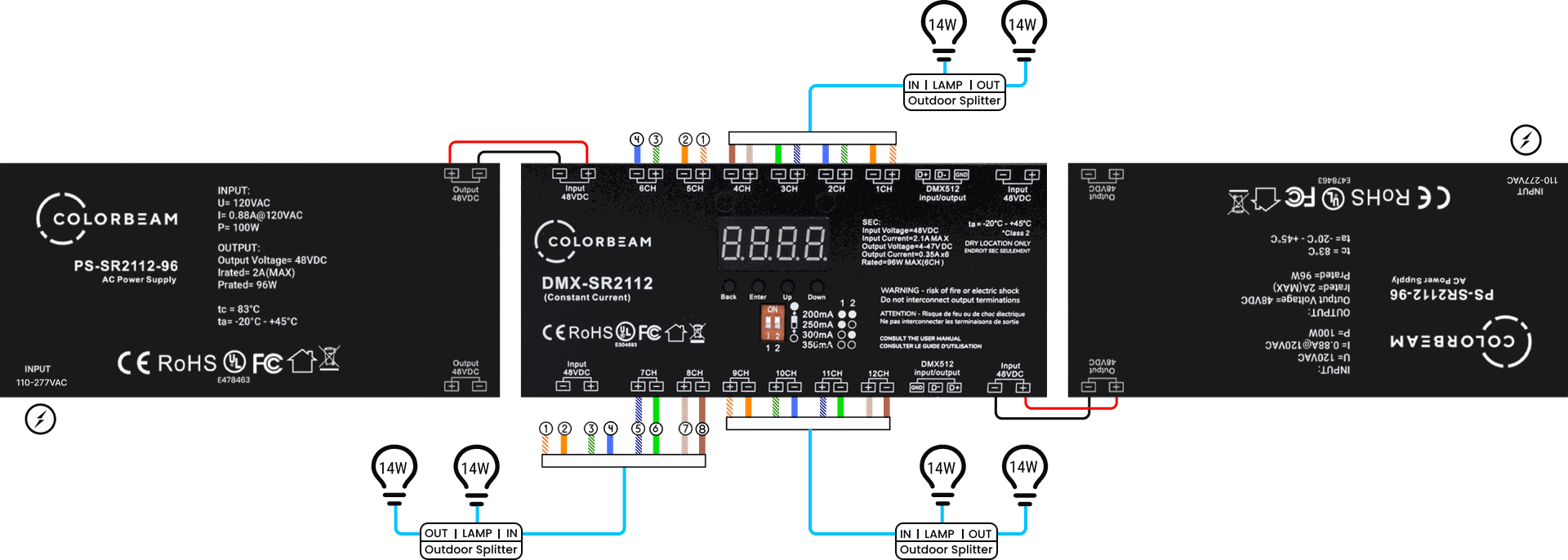

    When connecting two PS-SR2112-96 units,

    • Connect one to the top and one to the bottom of the DMX-SR2112
    • Set the side switch on the DMX-SR2112 to “2 PS”

    This ensures even current distribution and maintain UL certification.

    The DMX-SR2112 driver must be set to 200mA.

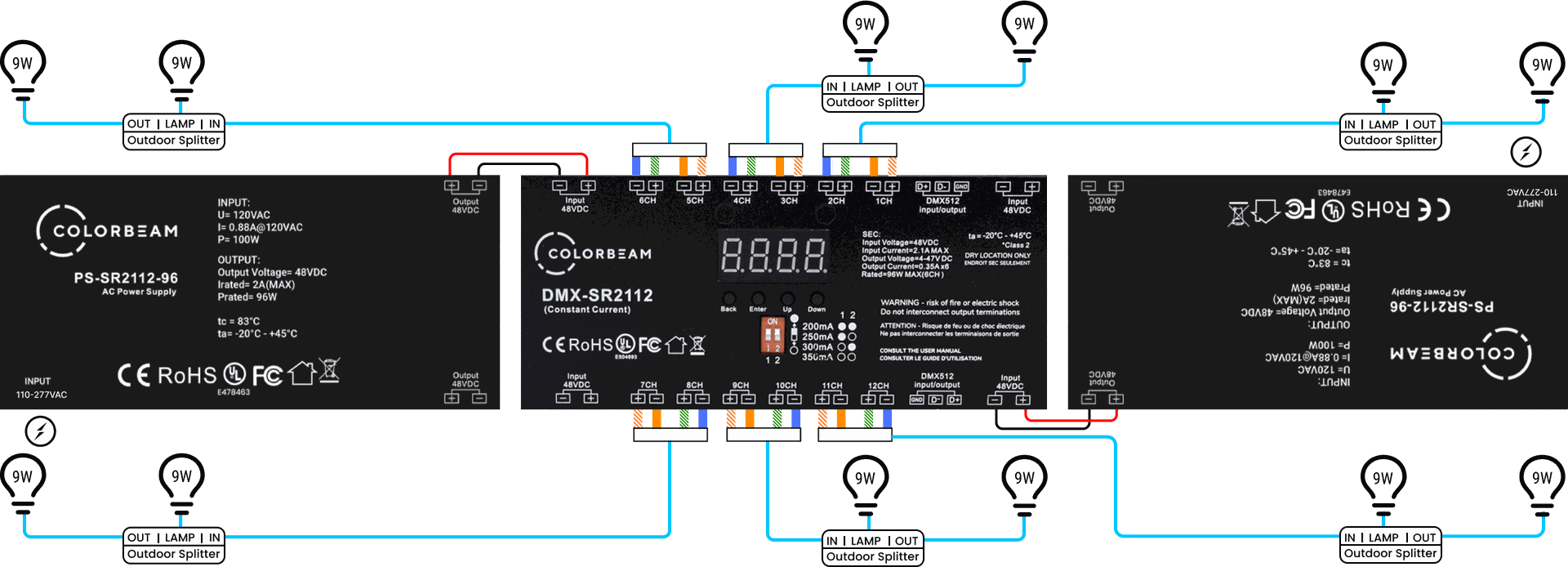

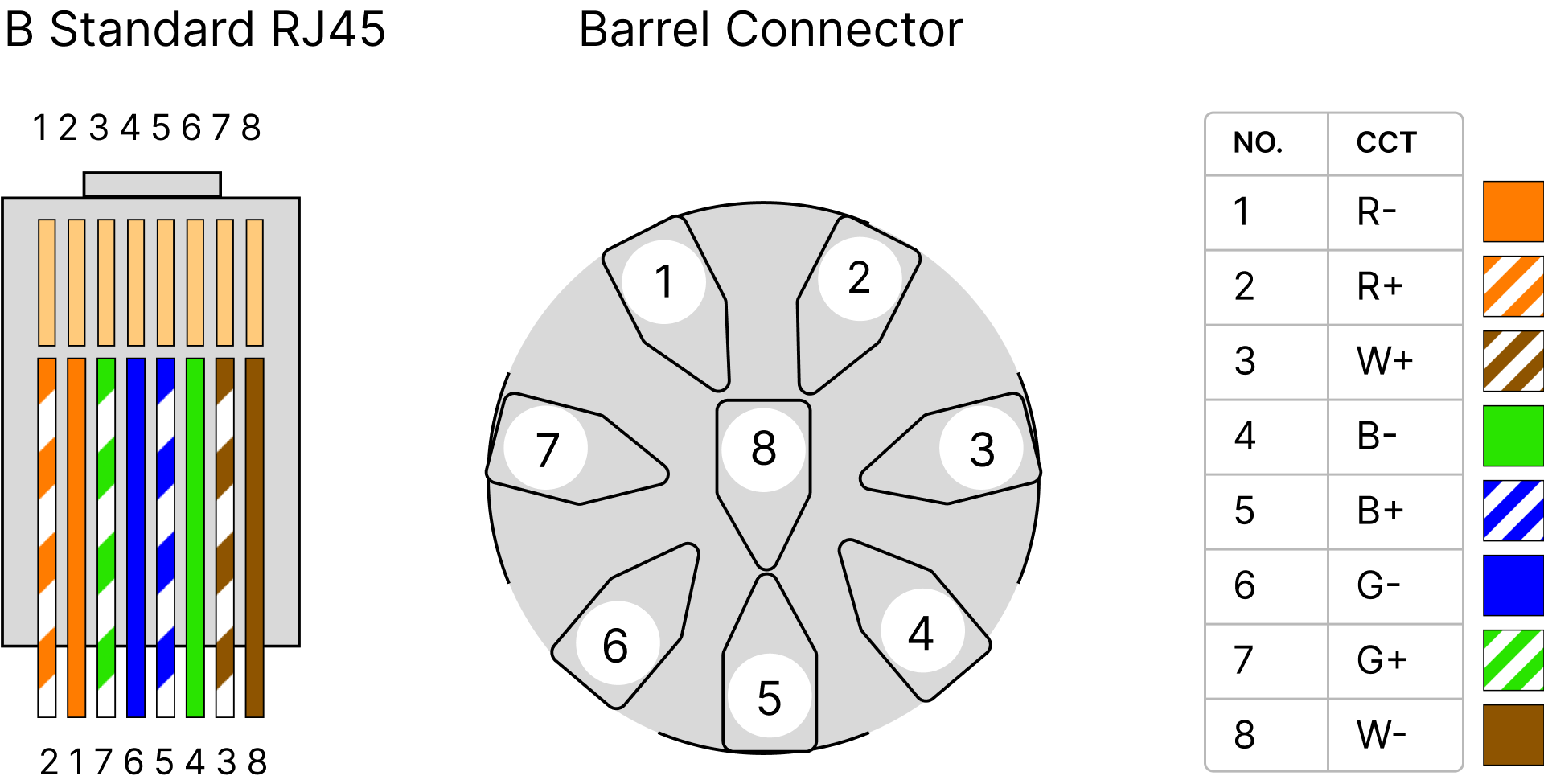

    A barrel connector is needed to connect the outdoor splitter to the DMX-SR2112 driver. Follow the diagram for wire color connections.



    Tunable White

    Tunable (CCT) bulbs require two channels on a driver. The lower (odd number) channel controls the warm side of the chip and the higher (even number) channel controls the cool.

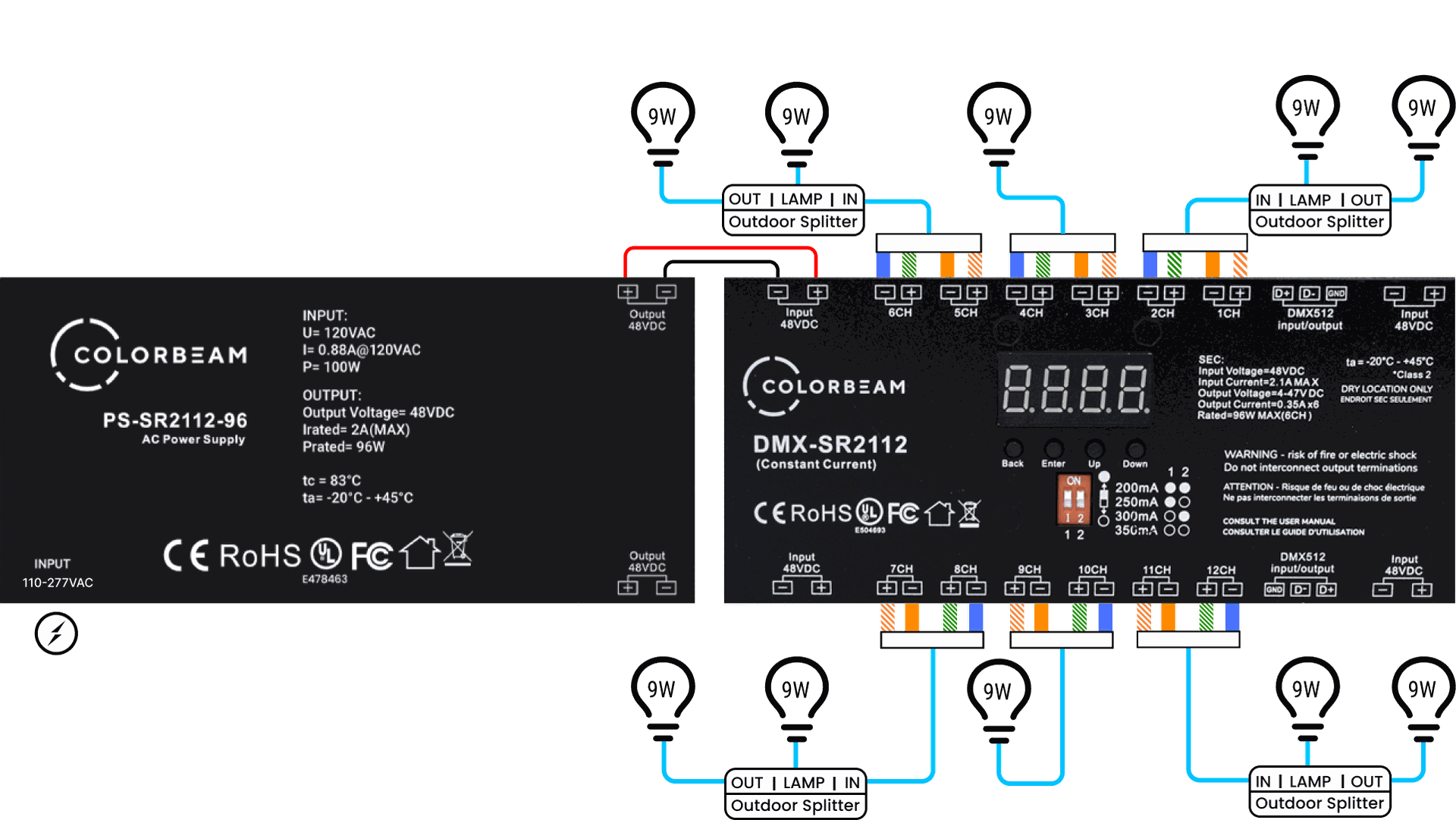

    9W

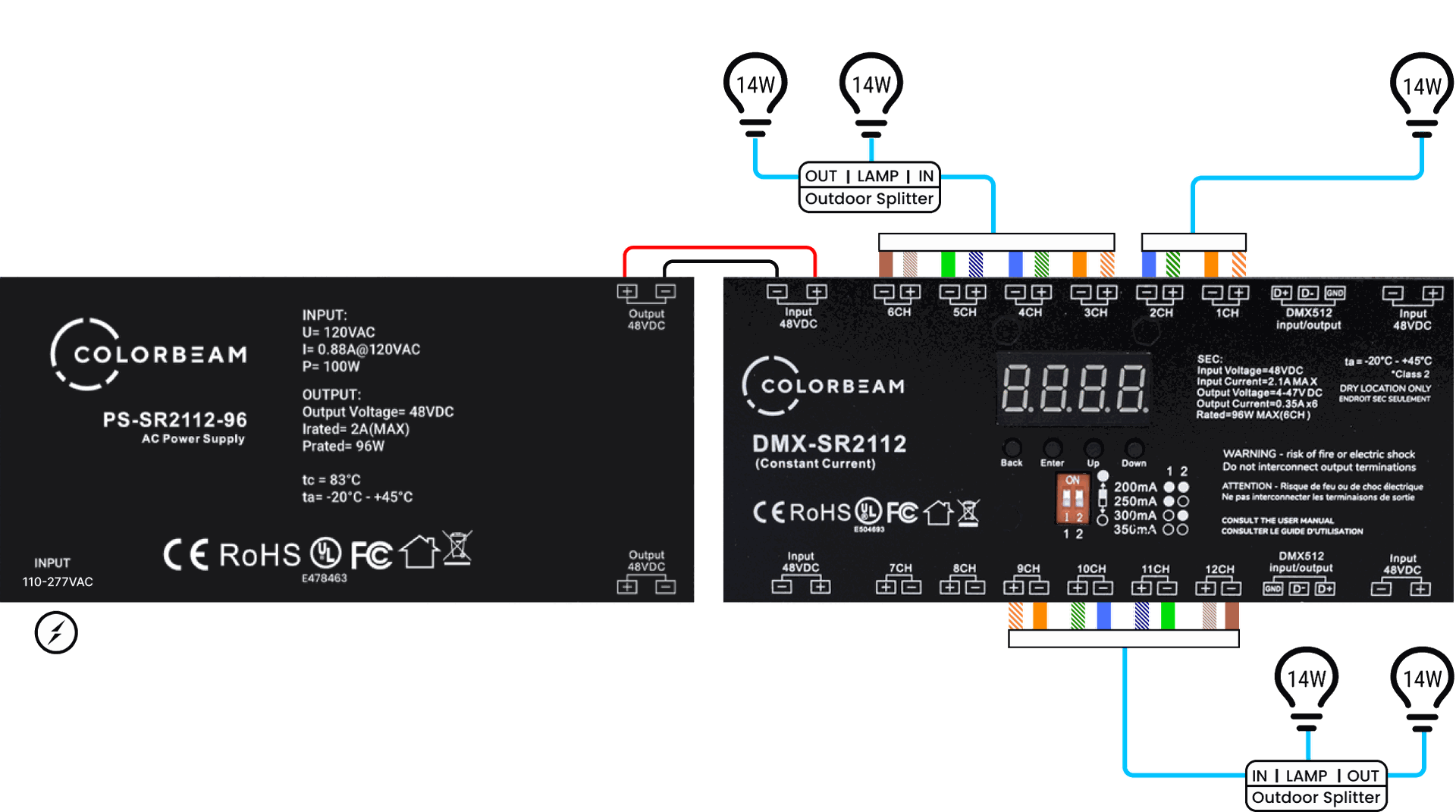

    14W


    RGBW

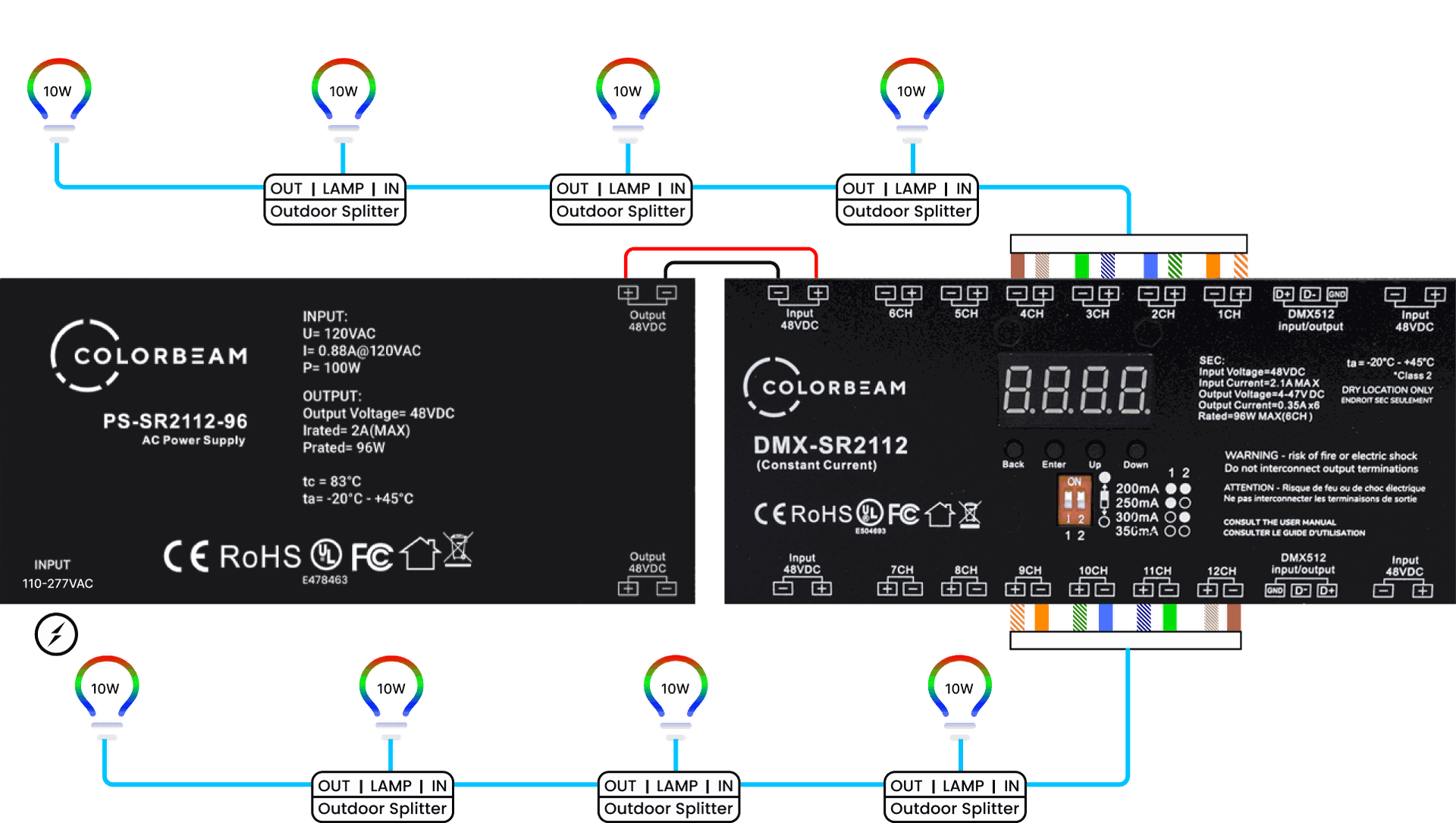

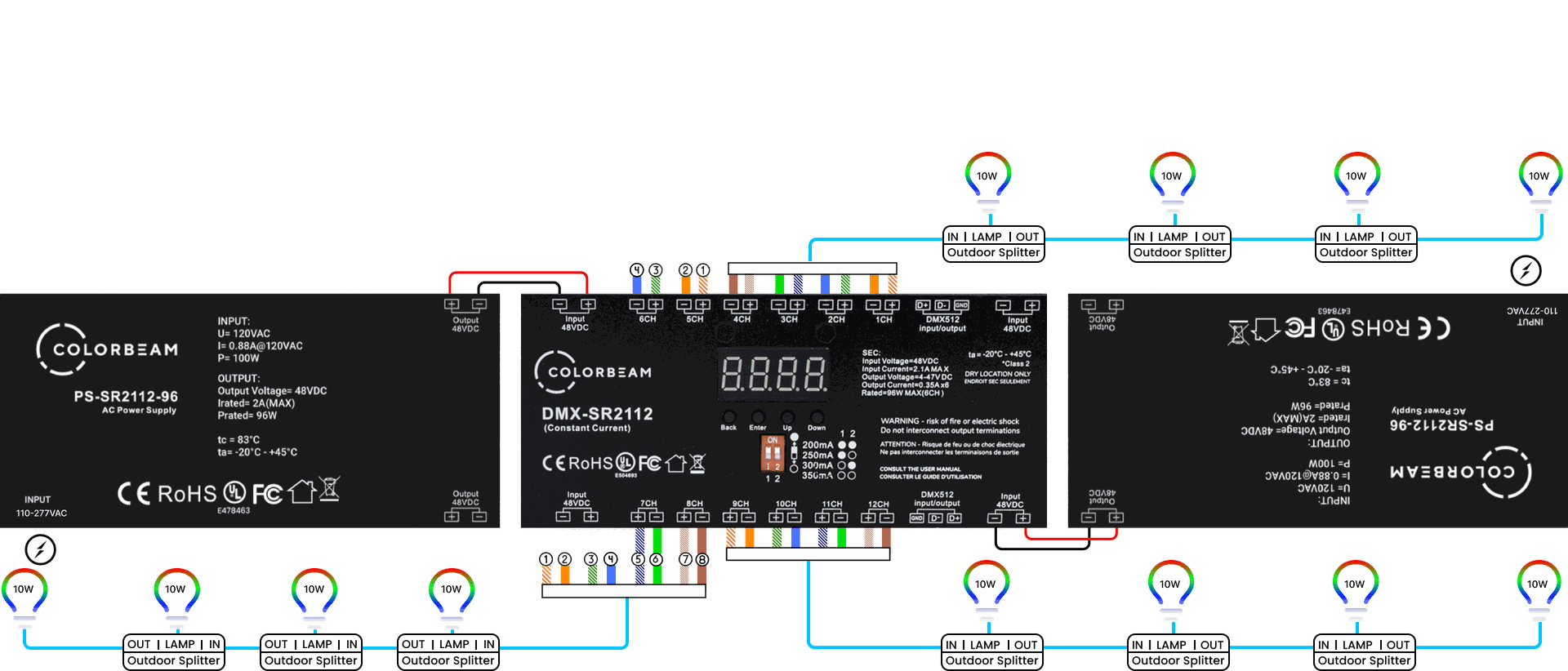

    RGBW bulbs require four channels on a driver, each controlling one color:

    1st CH – red
    2nd CH – green
    3rd CH – blue
    4th CH – white
