This GATEway version’s firmware is not compatible with the v2 firmware release.


v1 Firmware Configuration


Configuration Page

To access the Gateway’s configuration page, just enter your Gateway’s IP in a Chrome web browser.

http://<Gateway ip>

Interactive Page

To access the Gateway’s interactive page, just enter your Gateway’s IP with port 8889 in a Chrome web browser.

http://<Gateway ip>:8889

TCP Protocol

The Gateway loads, scenes and virtual keypads can also be called programmatically with with TCP commands.

More in Integration Protocol.


Ports for Online Support

Please allow outgoing TCP connections for the Gateway for ports 8222 and 2001-2099 on your router’s firewall. If you prefer to use a single port instead of a range for the second rule, please inform us of the specific port you allowed during a support intervention.


SD Card Replacement

Some Gateways may have there internal SD cards break down and need to be replaced. This is by no means normal. If this happens to you, please contact us right away and we will send you a replacement SD card.

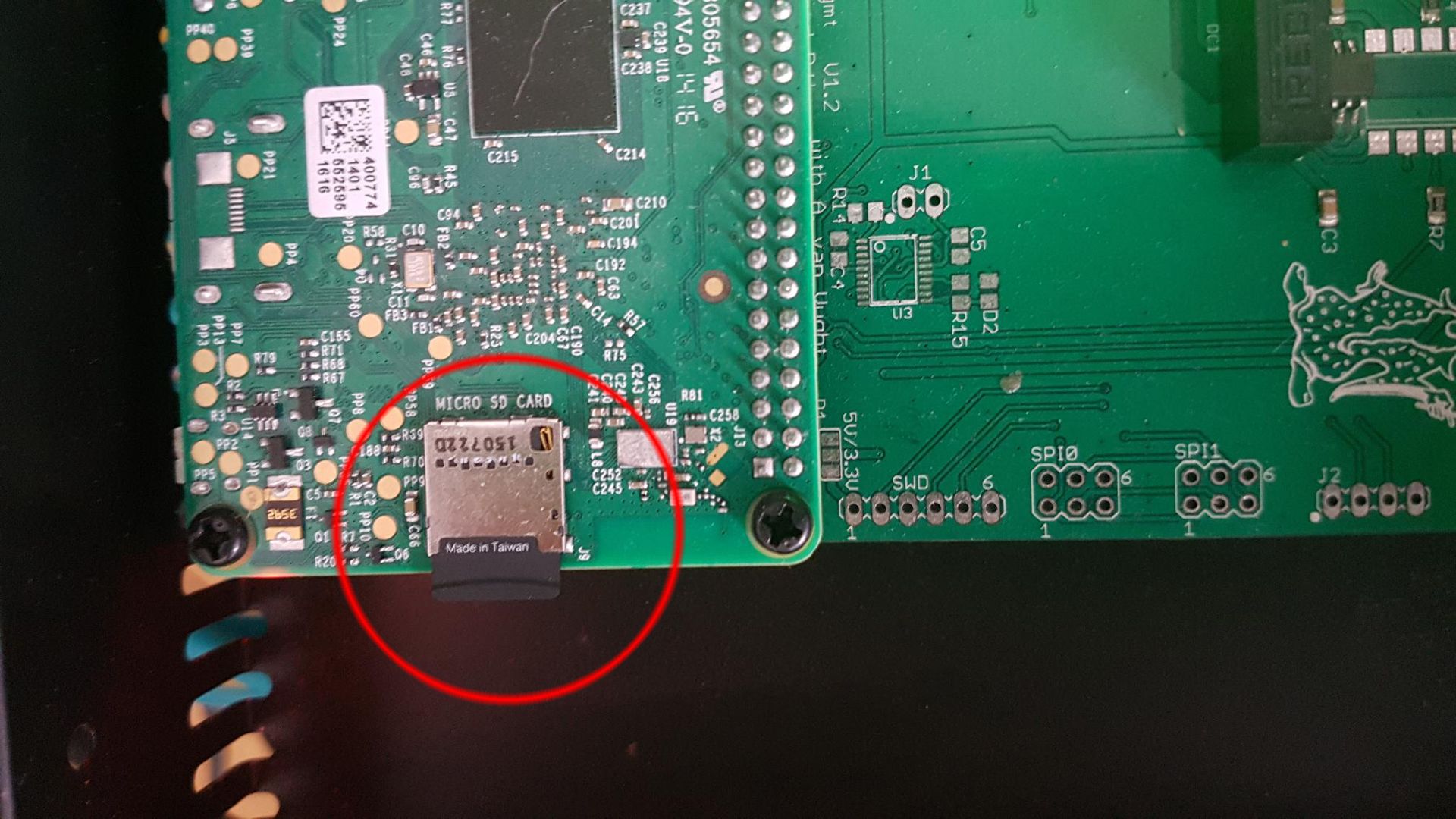

The picture below shows where the SD card is located once you open the Gateway.

To replace the SD card, simply pull out the old one, then insert the new SD card in the same slot. Make sure the pins of the SD card face the pcb board.



Version and Changelog

Current Available Gateway Version:  v1.433


Spec Sheet

Spec sheet_CBNA-GATEWAY.pdf
