    Features

    • Built-in power supply, 4 outputs, total 200 Watts.
    • USITT DMX 512 Standard Protocol to work with Orbit TP or other DMX controllers.
    • Three Multi-Segment displays for easy operation.
    • 20 fixed colors and 9 programmed color changing and fade time effects.
    • 3-Pin terminal block for DMX offers easy wiring and installation.
    • Wall mountable.

    The CBNA-200-Z4 has 4 RJ45 36W-48VDC ports. Multiple identical luminaires can be connected on a daisy chain and linked to a single port on the CBNA-200-Z4. Individual control is not possible; instead, each port on the CBNA-200-Z4 controls the entire chain of luminaires.


    Do not mix different wattage LED fixtures on same port.

    DO NOT EXCEED 36 WATTS PER PORT/OUTPUT.

    AN RJ45 TERMINATOR IS NEEDED AT THE END OF EACH LINE TO ENABLE A DC LOOP.


    Spec Sheet

    Spec sheet_DRV-D-200-Z4.pdf
    pdf


    Stand Alone User Guide

    1. Turn Power ON/OFF

    The CBNA-200-Z4 has no switch, simply plug it into a power outlet.


    2. Preset Colors

    There are 20 built-in preset colors in the device. Press Menu, the display will show “C01” on the display.

    • Press Up or Down to select the desired color from C01 ~ C20.
    • Press Menu to select/confirm.

    It will not be in effect once the driver receives a DMX signal.

    MODE

    R

    G

    B

    C0110000
    C021000100
    C03100050
    C04500100
    C05100020
    C0610015100
    C071001550
    C08501550
    C0900100
    C10040100
    C11015100
    C12010060
    C13010030
    C1410010030
    C15060100
    C1601000
    C17100800
    C18501000
    C19100150
    C20100100100


    3. Fade Transitions (9 Programs)

    • There are 9 built-in programs in the device.
    • Press Menu, the display will show “F01”.
    • Press Up or Down to select desired transition program from F01 ~ F09
    • The fade time of the transition can be changed from 1 to 20 seconds. Eg: F03 is running, the fade time can be changed by pressing menu and holding for 3 seconds.
    • The display will show 2 digits.
    • The fade time can be adjusted from 1 to 20 by pressing Up or Down, and confirmed by pressing Menu.


    4. DMX Address Setting

    • Press Menu and the display will show the initial DMX address “001”.
    • The user can select the desired address from 001 ~ 511 by pressing Up or Down.
    • Press Menu to confirm.
    • First address should be 011 and each CBNA-200-Z4 needs 20 channels (in 5channels/full DMX mode), second unit address should be set at 031.
    • DMX address “512” is test mode.


    5. DMX Mode Setting

    • The following mode can be selected by pressing Menu to confirm it.
    • Press Menu first and the display shows “S–” and press Up or Down to select the desired program from S01~S21. Press Menu to confirm.
    • For maximum flexibility, you should turn on the following modes: S11, S20, S31, S40.

    SETTINGS

    MODE

    S10Control all the LED fixtures in the same mode (default)
    S11Control each port (x4) independently
    S20Master off (default)
    S21Master on
    S30RGB 3 channels (default)
    S31RGB, Dimmer, Strobe 5 channels
    S40Delay off (default)
    S41Delay on


    6. Signal Indicator

    The green LED light shows up when the driver is receiving DMX signal.


    7. Sleep Mode

    After 1 minute without instruction from the keypad, the control unit will automatically go into Sleep Mode. In Sleep Mode, the control unit is functional but the display is off and the keypad is locked.

    To exit Sleep Mode, the user can press the Menu button and hold for 5 seconds until the display turns on. When using the DMX Address to control the lighting fixtures, Sleep Mode will trigger after 30 seconds.

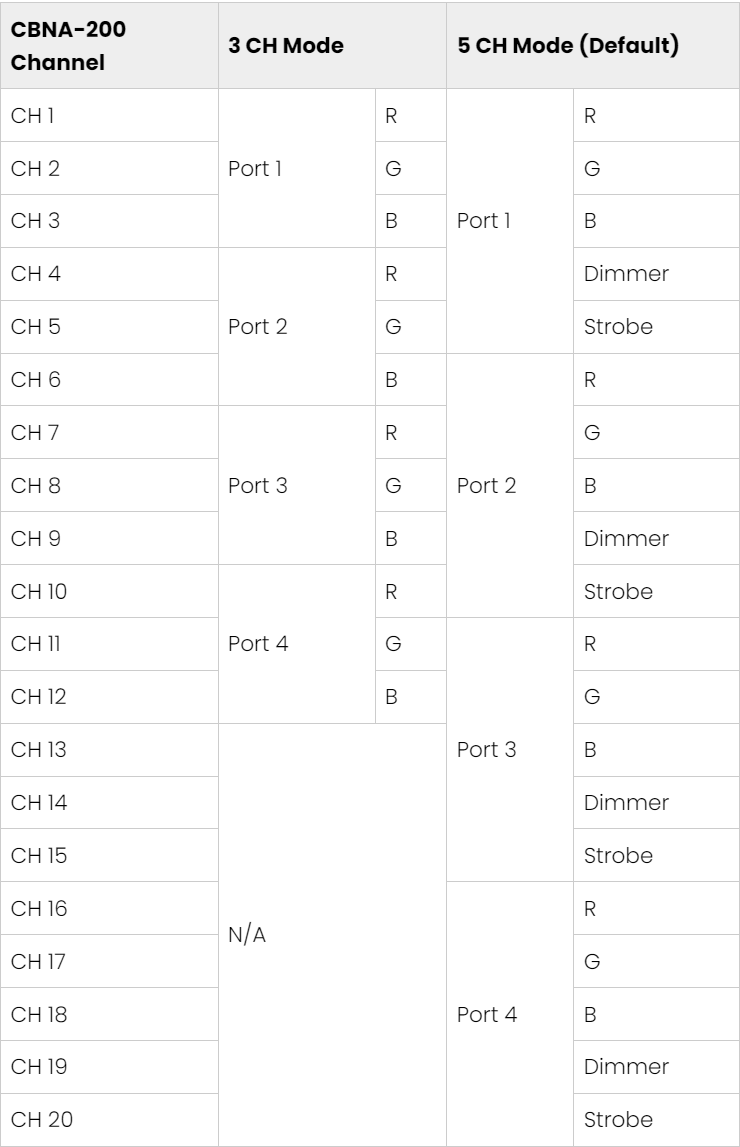

    DMX Channels
