    ALL POWER FEEDS MUST BE PROTECTED BY A DEDICATED 20 AMP CIRCUIT BREAKERS, SUPPLIED AND INSTALLED BY CERTIFIED ELECTRICIANS IN ACCORDANCE TO LOCAL AND NATIONAL ELECTRICAL CODES.

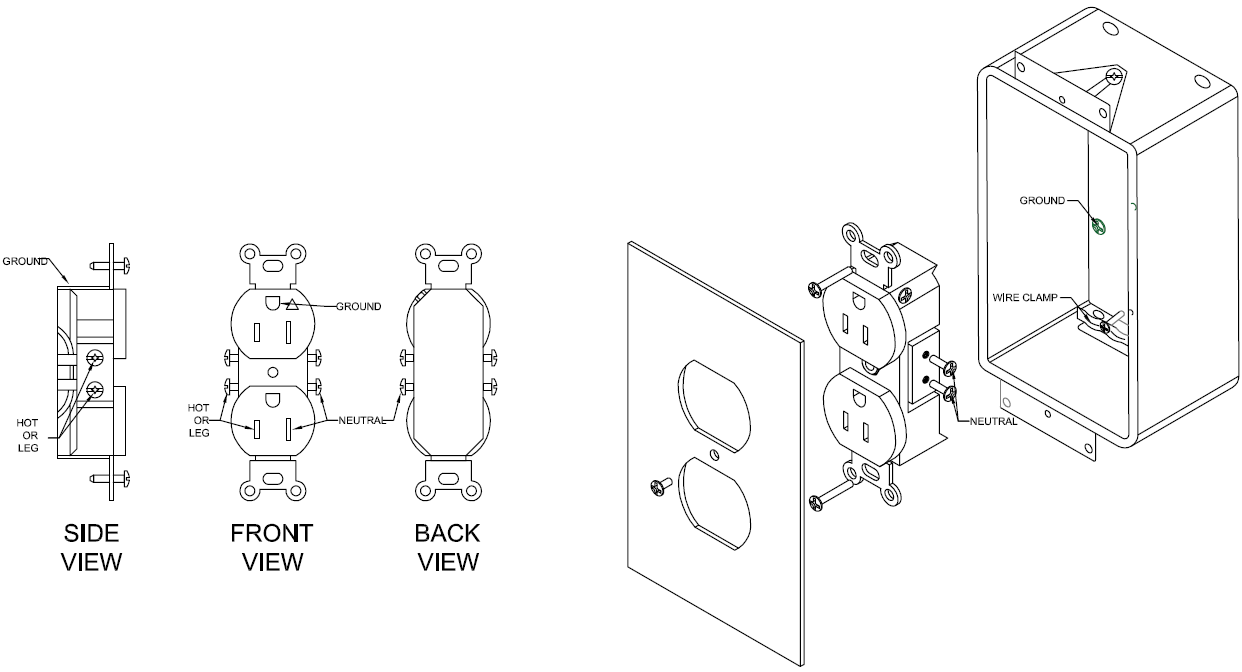

    • Enclosure must be wired by a certified low voltage installer in accordance with all local codes.
    • Enclosure should be grounded as per local and national electrical codes.
    • Never load electrical breakers at more then 80% capacity.
    • Calculate AC amperage consumption to determine appropriate electrical requirements and electrical distribution in each enclosures.
    • Use 12/2 cable for external electrical distribution.

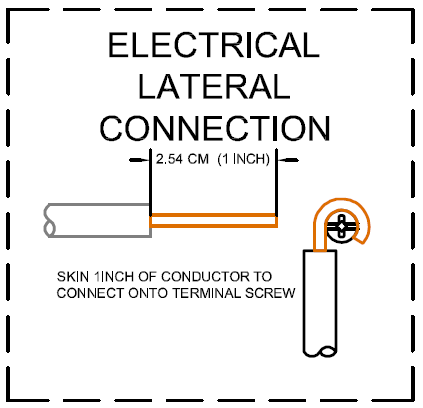

    • Use copper conductors only – rated at 60°C.
    • Low voltage and AC should be run within the enclosure separately.
    • If more than one circuit is necessary in a same enclosure, use the same electrical phase.


    Equipment Powder Consumption

    Power Supply Usage @ 80%


    WATTS

    DC AMP

    AC AMP

    PS-SR2112-96

    96


    2

    SRPC-2108-24-200CVF

    200


    2.3

    HLG-100-24 4A

    96

    3.2

    0.6

    HLG-240-24 10A

    192

    8

    1.45

    HLG-320-24 13.4A

    240

    10

    1.81
