Component Configuration

• Refer to our website for specifications regarding maximum weight capacity.
• Keep AC separated from low voltage using our included bracket lacing.
• Use provided nylon grommets to protect any wires from damage at top and bottom of enclosure.
• Leave space between drivers for aeration purpose.

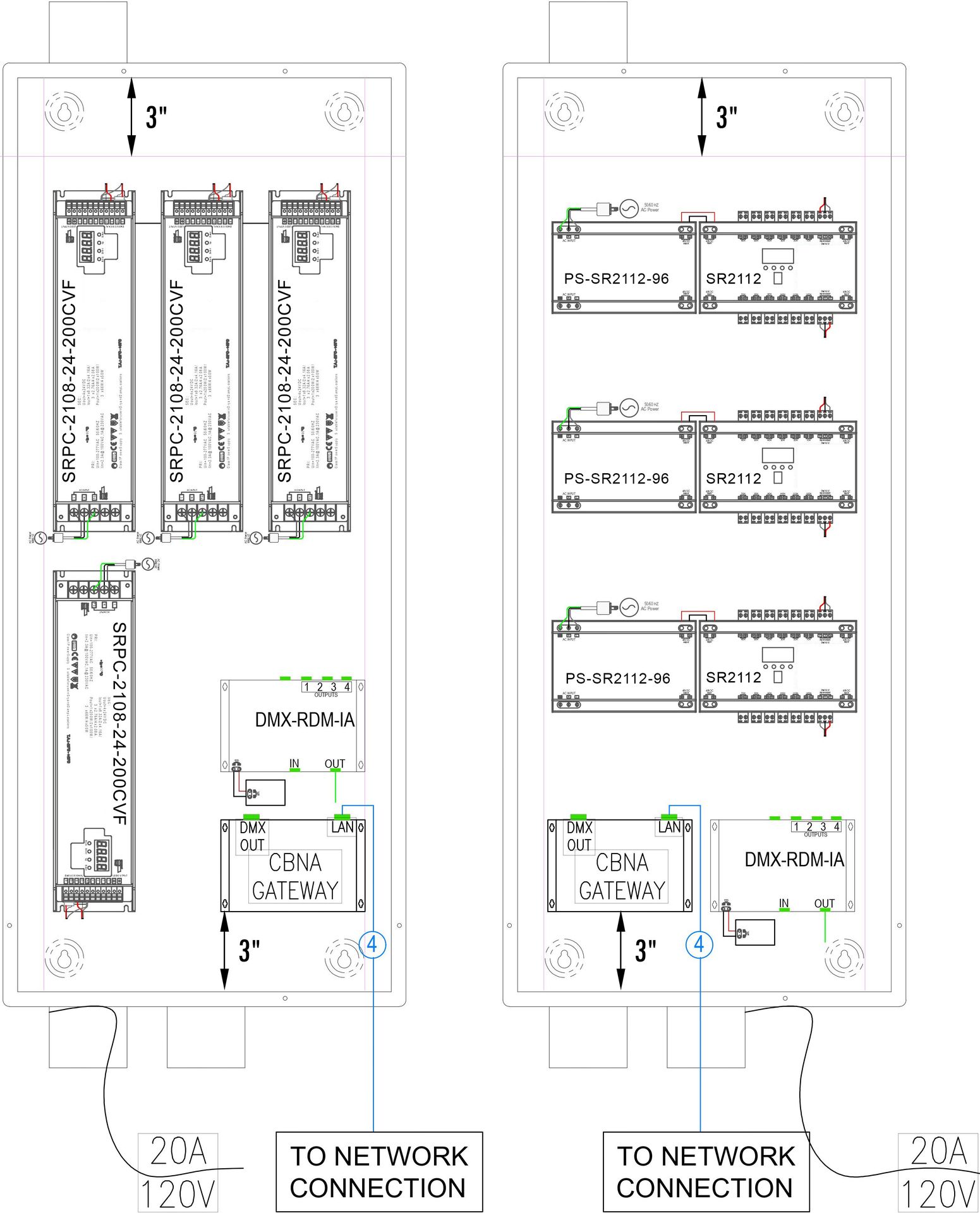

Enclosure 2x1

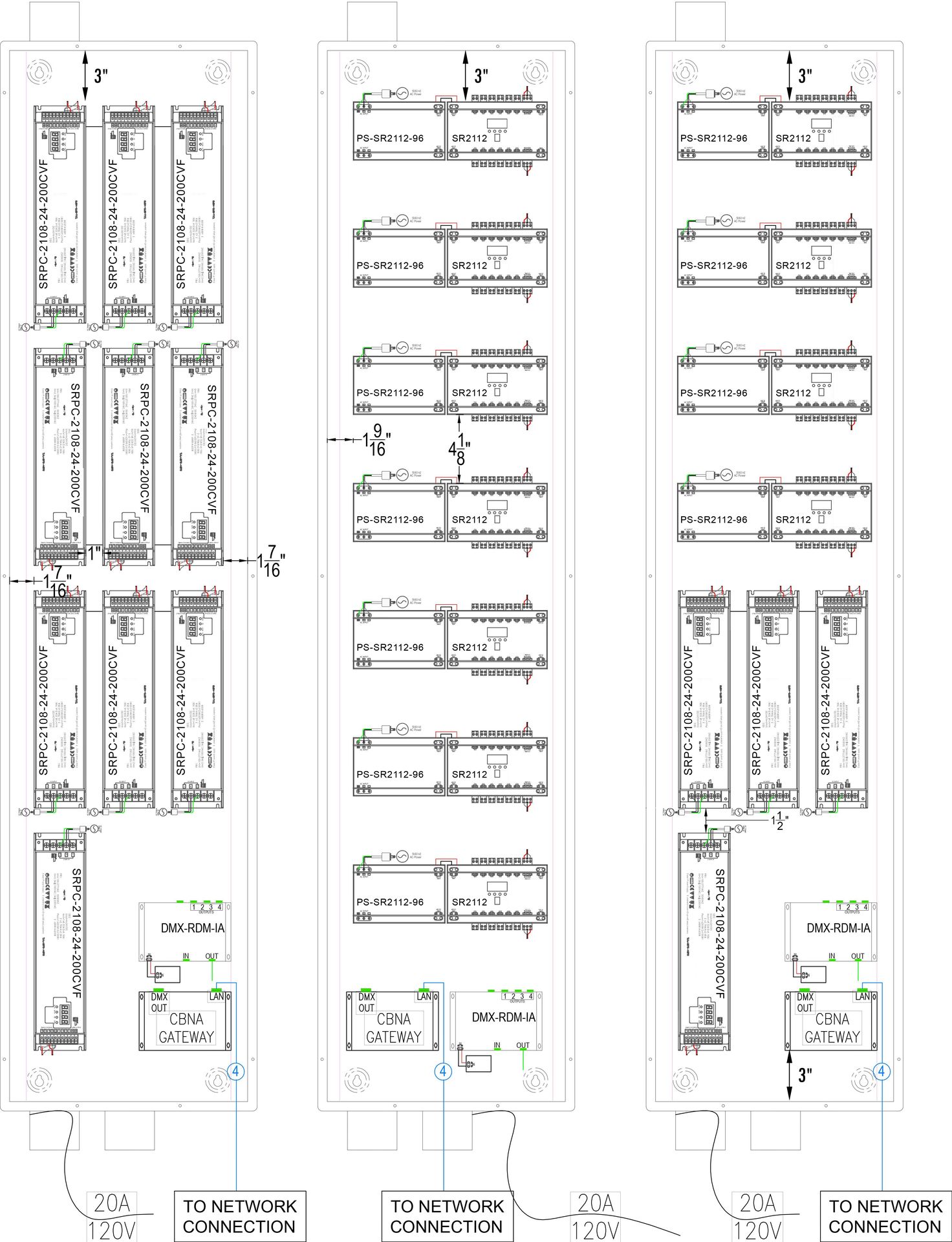

Enclosure 4x1

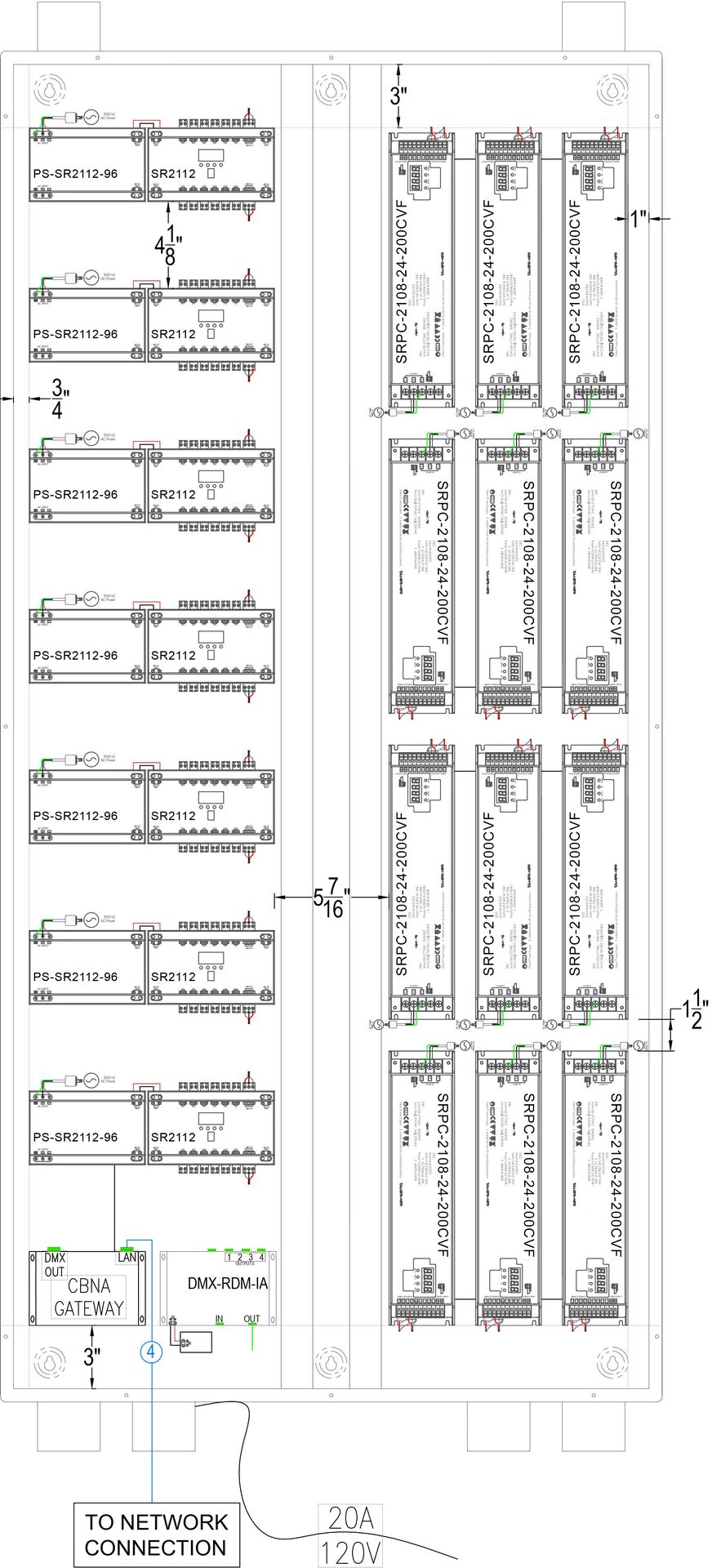

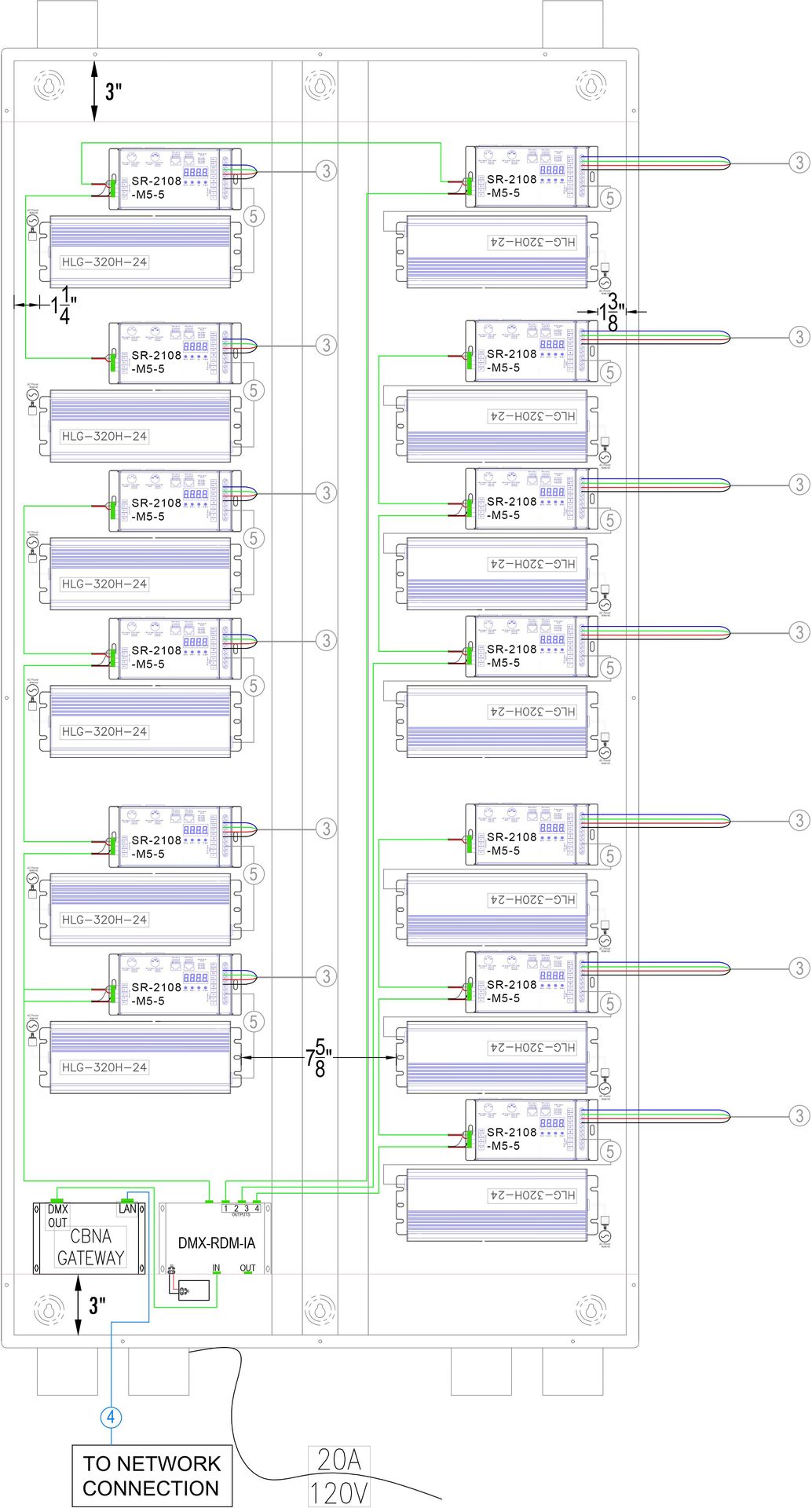

Enclosure 4x2
