Multi-Conductor (Speaker) Cable
Multi-Conductor (Speaker) Cable
All multi-conductor cable is terminated directly to outputs on the decoder and field spliced to the luminaire as necessary. We recommend keeping all wire colors consistent (e.g. red wire for red channel, etc.), however, it is not mandatory. Below is the typical pinout for the multi-conductor products.
| Pin | Single Color | Tunable | RGB | RGBW | RGBWW |
|---|---|---|---|---|---|
| 24v (+) | 24v Power | 24v Power | 24v Power | 24v Power | 24v Power |
| 1 | Dim Only | Warm White | Red | Red | Red |
| 2 | Cool White | Green | Green | Green | |
| 3 | Blue | Blue | Blue | ||
| 4 | White | Warm White | |||
| 5 | Cool White |
Wiring LED Tapes
Wiring 24v Outdoor Lights

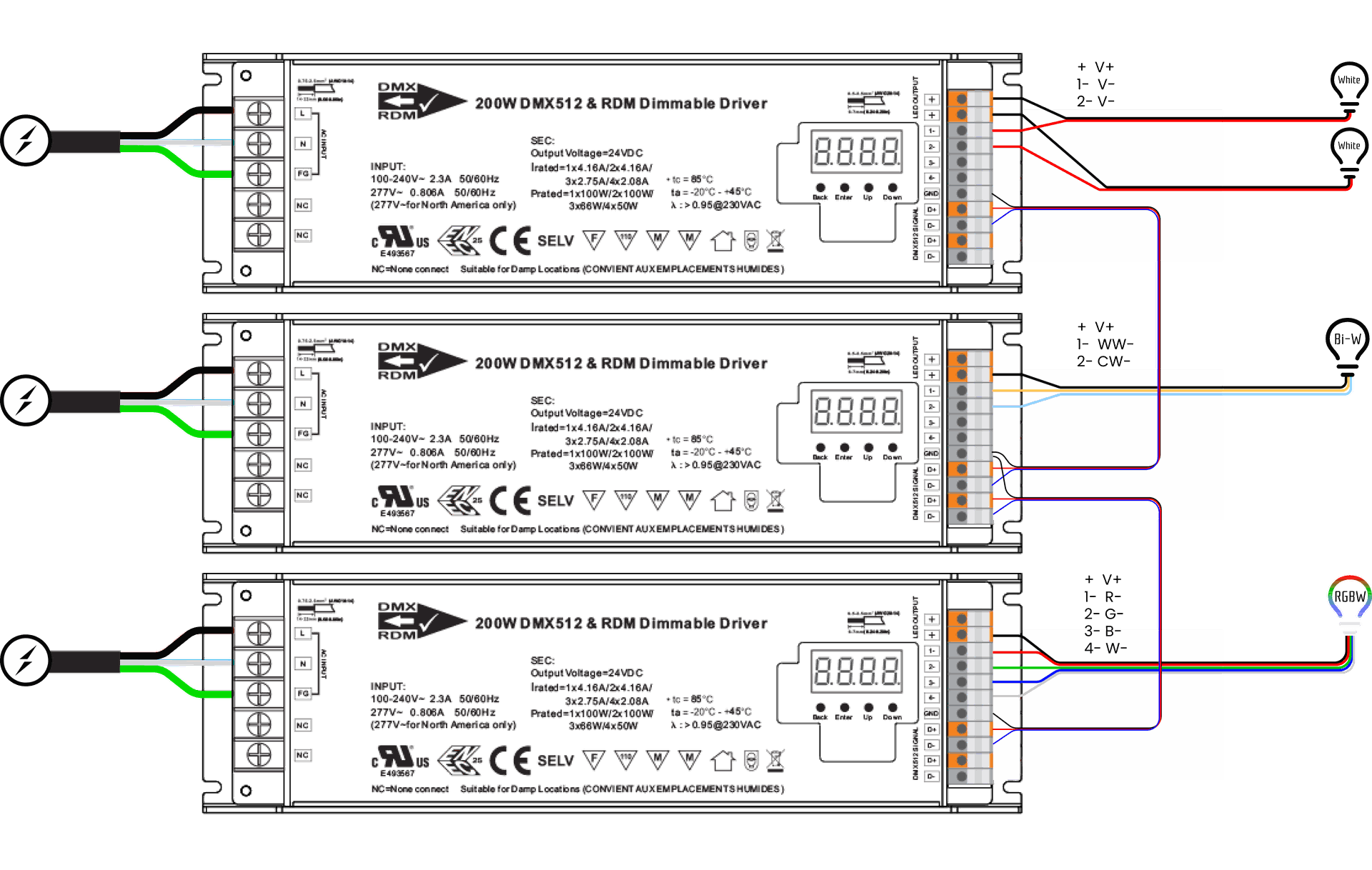

Wiring 12v/24v Outdoor Lights
