GATEway-1DMX
Firmware Compatibility
The GATEway-1DMX is compatible with a variety of automation systems which are listed below based on firmware.
v2 Firmware
Control4
URC
Crestron Home
Crestron SIMPL
All v2 integrations utilize custom drivers
v1 Firmware
Control4 via v1 drivers
Crestron SIMPL via v1 drivers
Lutron via built-in telnet
Configuration
Configuration instructions for the GATEway:
Features
Built-in Web Application
Fanless Enclosure
Power Button
Status LED
1 Ethernet Port (10/100)
1 Independent DMX Universe
Galvanic Isolation
3-Year Warranty
Specifications
Dimensions: W 139.0 mm x H 88.0 mm x D 66.2 mm
Weight: 560g
Operating Environment: 0 to 50°C non-condensing-dry-locations
Certification: cULus LISTED – E476753

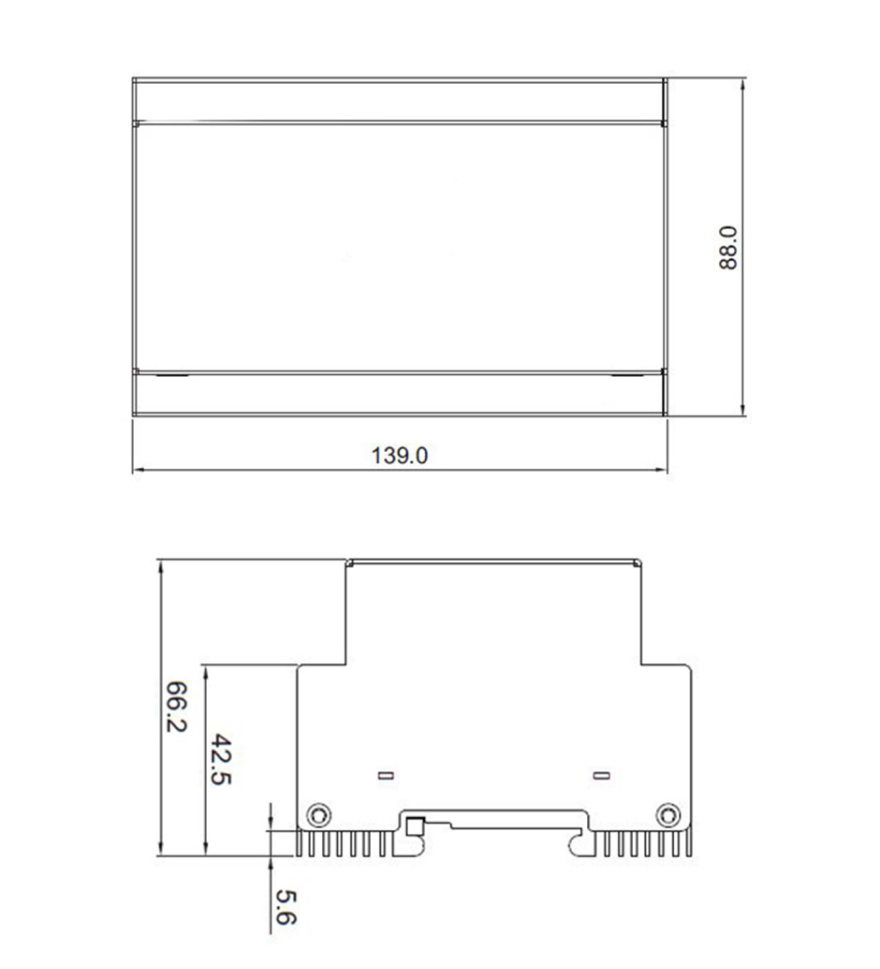

Dimensions
Wiring Diagram
In this example, the Colorbeam GATEway-1DMX connects to the LAN and interfaces with four drivers via DMX cables: two DMX-SR2112 Drivers and two SRPC2108-24-200CVF Drivers, streamlining the control of the entire lighting system.
For specific wiring requirements related to your project, refer to your enclosure diagrams provided by Colorbeam.
