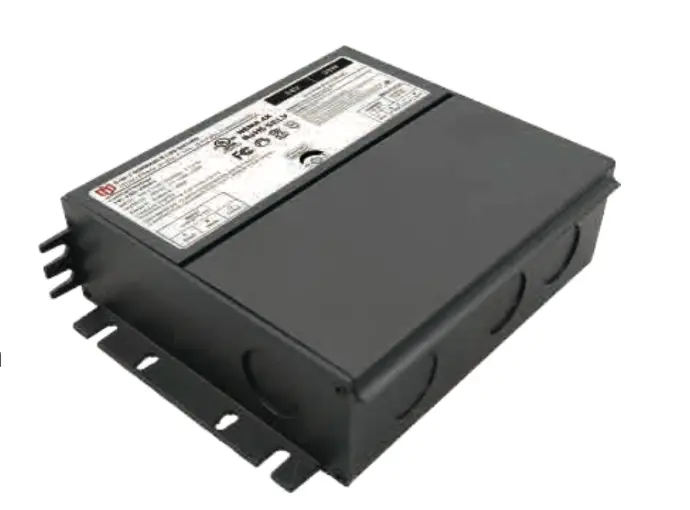

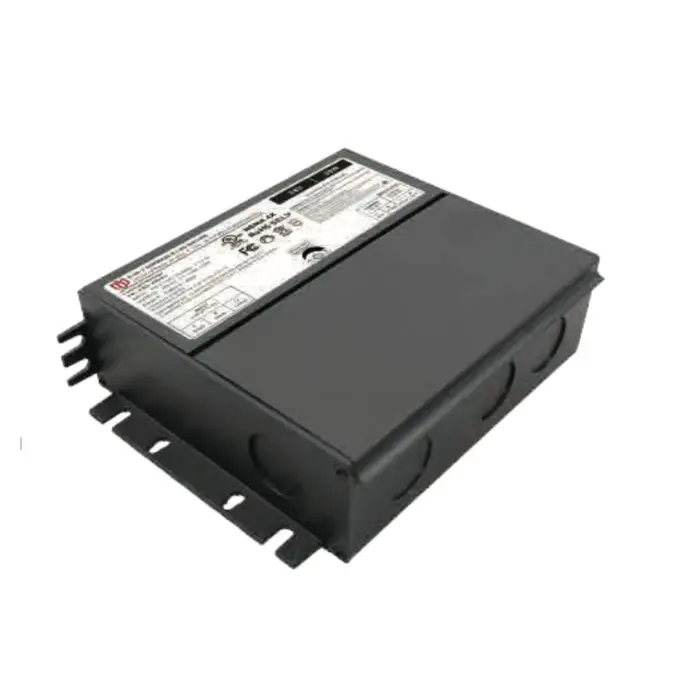

PS-CVD-24V

Precision Power. Seamless Dimming. Engineered for COB Tapes

Colorbeam’s Universal Dimmable Power Supply delivers the advanced performance and flexibility required for today’s high-end, low-voltage lighting systems. Designed to work flawlessly with all COB  LED tape lights, this driver ensures rich, flicker-free illumination that complements Colorbeam’s wellness and experiential lighting environments.

With 5-in-1 dimming capability—including Triac (forward/reverse phase), ELV, MLV, 0-10V, and PWM—this power supply adapts to virtually any dimming protocol, enabling smooth, dynamic light control from 0.1% to 100%. Whether it's for residential ambiance, commercial productivity, or hospitality design, Colorbeam delivers a lighting experience that’s both beautiful and functional. Available in 60W, 100W & 200W

FEATURES

  • 5-in-1 Dimming: Triac, ELV, 0-10V, PWM, and potentiometer support
  • Flicker-Free Dimming: Ultra-smooth from 0.1% to 100%
  • Customizable PWM Frequency: Standard 4000Hz (adjustable 250–20,000Hz)
  • Voltage Fine-Tuning: Adjust output voltage to offset drop or pre-set brightness
  • Wide Input Voltage: 110–277VAC, auto-sensing
  • Superior Efficiency: Up to 88% with PF > 0.95
  • Robust Protection: Short-circuit, overload, and over-temp safeguards
  • Flexible Mounting: Flat, side, or vertical installation options
  • Rugged IP65 Housing: Weather-resistant aluminum body
  • Title 24 / JA8 Compliant: Meets strict energy and safety standards

Spec Sheet - PS-CVD-24V-60W

Spec Sheet - PS-CVD-24V-100W

Spec Sheet - PS-CVD-24V-200W



Photo Gallery

Specifications

Rated Power

  • 60W | 100W | 200W

Input Voltage

110-227V

IP Rating

IP65

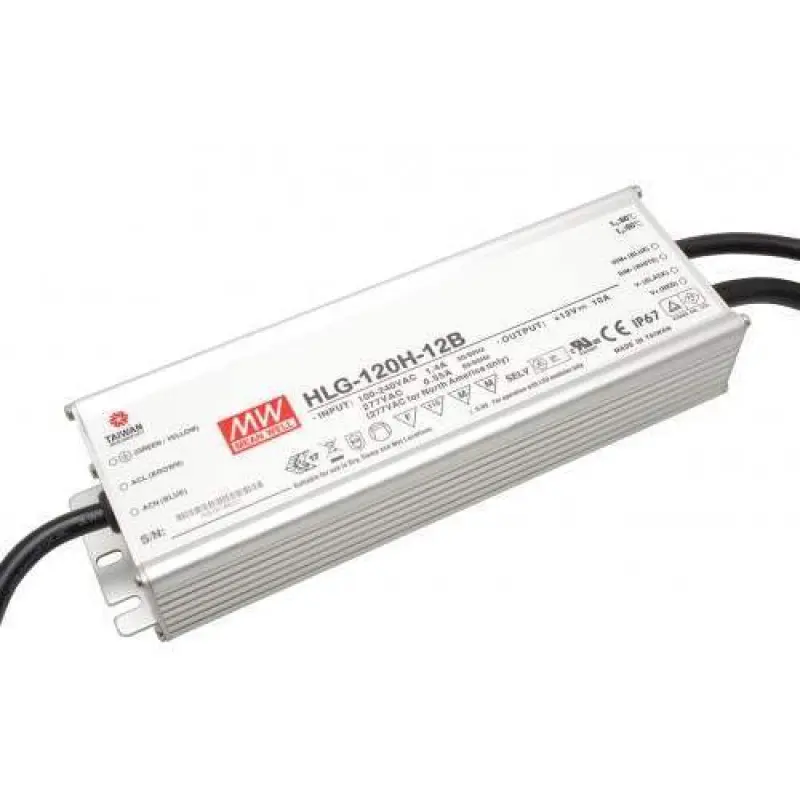

HLG-120H-12V-A

Features

  • Constant Voltage + Constant Current mode output
  • Metal housing with class I design
  • Built-in active PFC function
  • IP67 / IP65 rating for indoor or outdoor installation
  • Function options: output adjustable via 3 in 1 potentiometer dimming: Timer dimming
  • Typical lifetime 62000 hours
  • 3 year warranty


 Download the technical document

Photo Gallery

Specifications

Input Voltage

90-305 VAC

IP Rating

IP 67

Rated Power

  • 120W

Output Voltage

10A

Dimensions

220 x 68 x 38.8mm

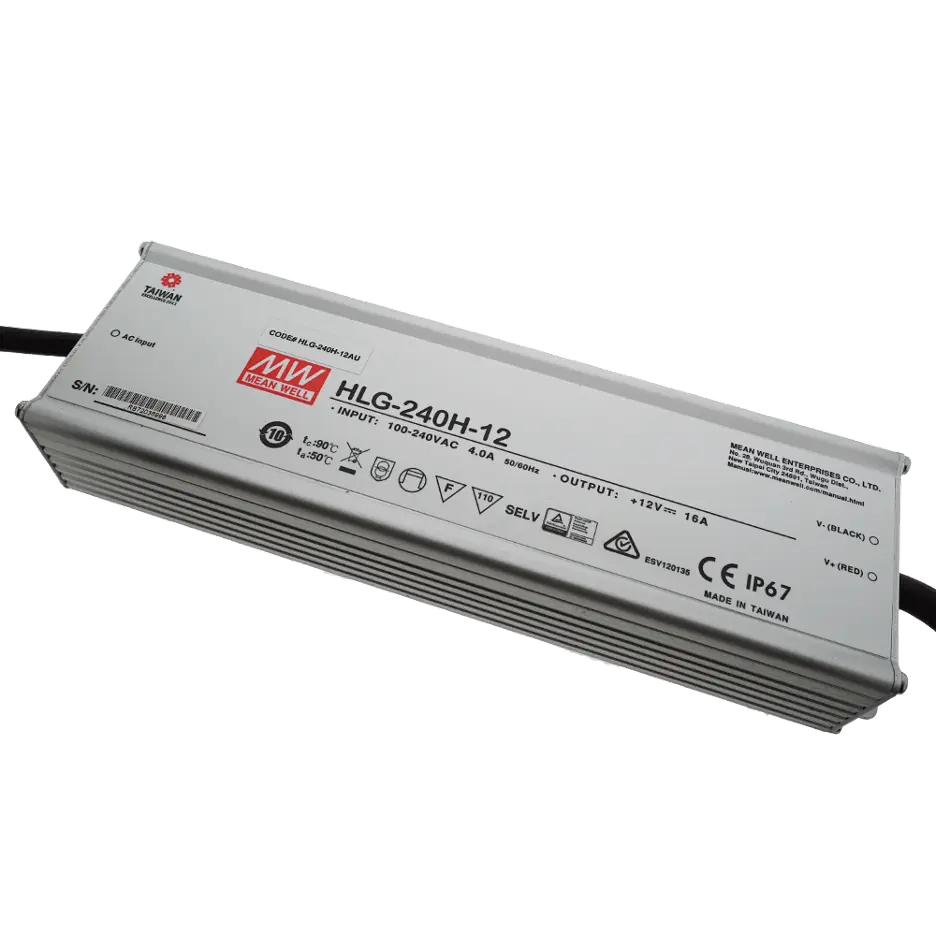

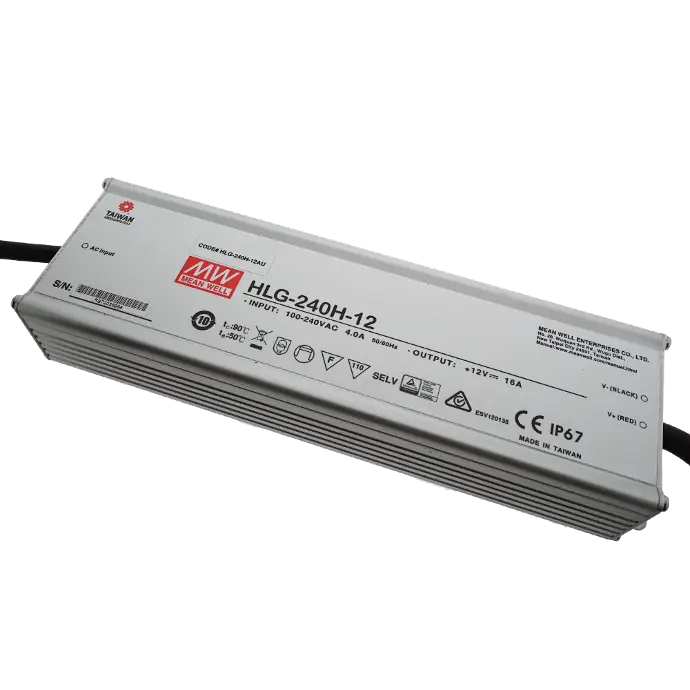

HLG-240H-12V-A

Features

  • Constant Voltage + Constant Current mode output
  • Metal housing with class I design
  • Built-in active PFC function
  • IP67 / IP65 rating for indoor or outdoor installation
  • Function options: output adjustable via 3 in 1 potentiometer dimming: Timer dimming
  • Typical lifetime 62000 hours
  • 3 year warranty


 Download the technical document

Photo Gallery

Specifications

Input Voltage

90-264 VAC

IP Rating

IP 65

Rated Power

  • 192W

Output Voltage

16A

Dimensions

244 x 68 x 38.8mm

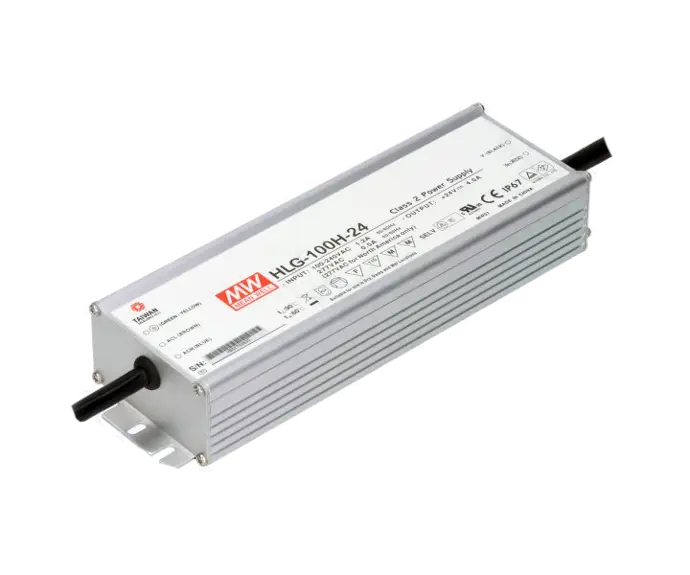

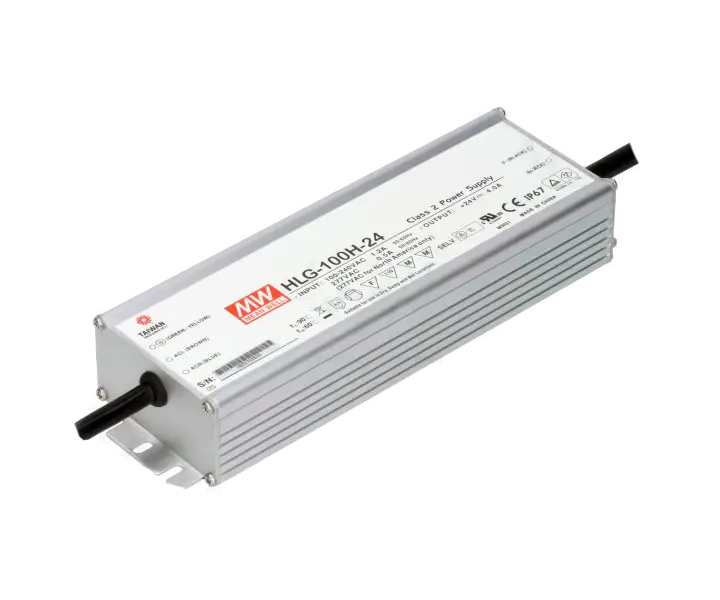

HLG-100H-24V-A

Features

  • Constant Voltage + Constant Current mode output
  • Metal housing with class I design
  • Built-in active PFC function
  • IP67 / IP65 rating for indoor or outdoor installation
  • Function options: output adjustable via 3 in 1 potentiometer dimming: Timer dimming
  • Typical lifetime 62000 hours
  • 3 year warranty


 Download the technical document

Photo Gallery

Specifications

Input Voltage

90-305 VAC

IP Rating

IP 65

Rated Power

  • 96W

Output Voltage

4A

Dimensions

220 x 68 x 38.8mm

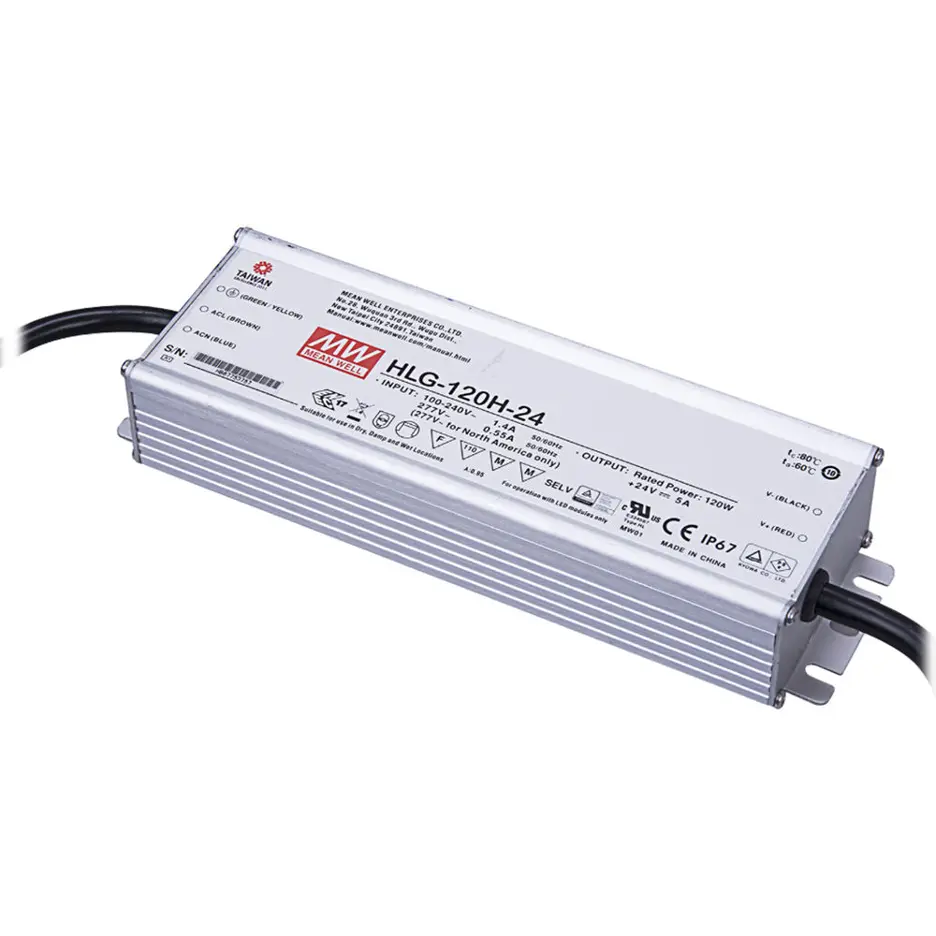

HLG-120H-24V-A

Features

  • Constant Voltage + Constant Current mode output
  • Metal housing with class I design
  • Built-in active PFC function
  • IP67 / IP65 rating for indoor or outdoor installation
  • Function options: output adjustable via 3 in 1 potentiometer dimming: Timer dimming
  • Typical lifetime 62000 hours
  • 3 year warranty



 Download the technical document

Photo Gallery

Specifications

Input Voltage

90-305 VAC

IP Rating

IP 65

Rated Power

  • 120W

Output Voltage

5A

Dimensions

220 x 68 x 38.8mm

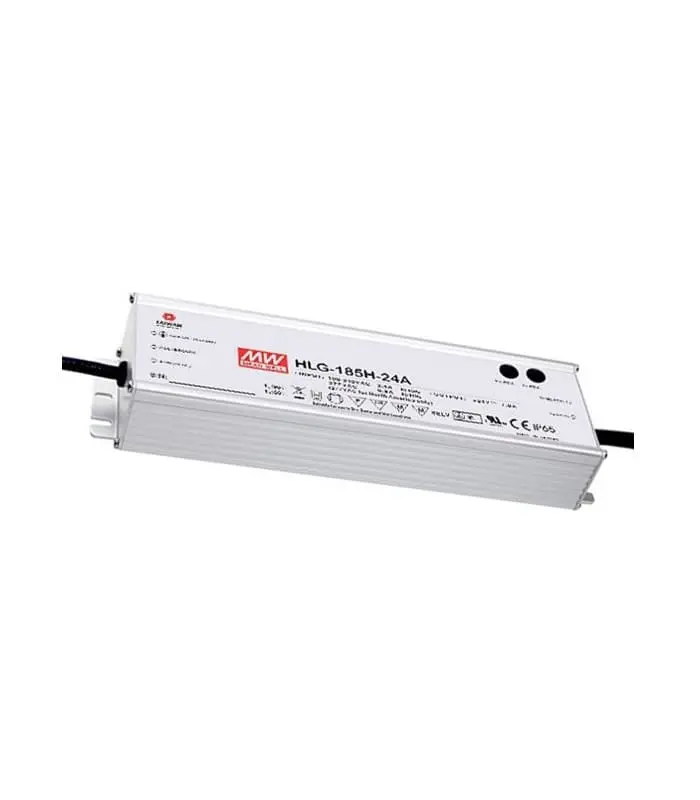

HLG-185H-24V-A

Features

  • Constant Voltage + Constant Current mode output
  • Metal housing with class I design
  • Built-in active PFC function
  • IP67 / IP65 rating for indoor or outdoor installation
  • Function options: output adjustable via 3 in 1 potentiometer dimming: Timer dimming
  • Typical lifetime 62000 hours
  • 3 year warranty


 Download the technical document

Photo Gallery

Specifications

Input Voltage

90-305 VAC

IP Rating

IP 65

Rated Power

  • 187.2 W

Output Voltage

7.8A

Dimensions

220 x 68 x 38.8mm

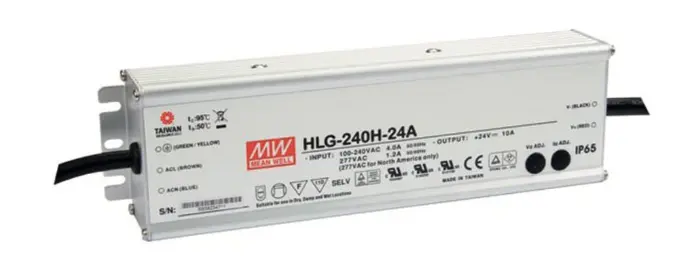

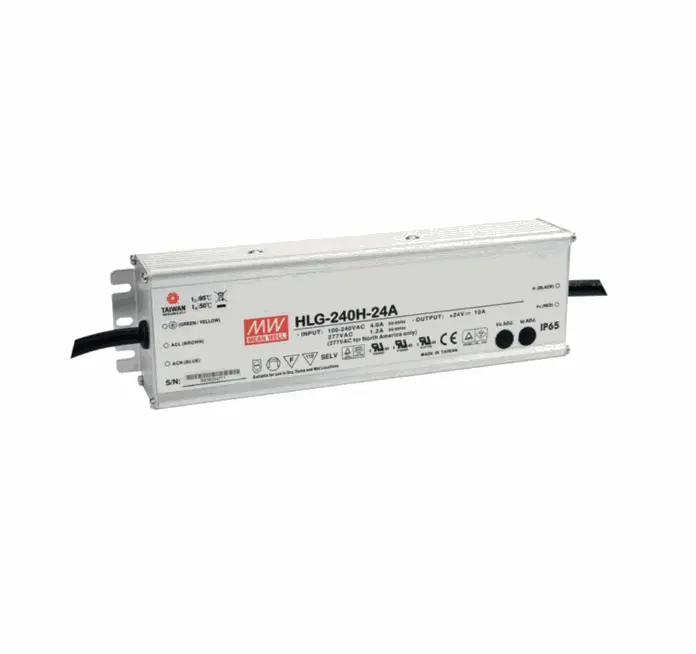

HLG-240H-24V-A

Features

  • Constant Voltage + Constant Current mode output
  • Metal housing with class I design
  • Built-in active PFC function
  • IP67 / IP65 rating for indoor or outdoor installation
  • Function options: output adjustable via 3 in 1 potentiometer dimming: Timer dimming
  • Typical lifetime 62000 hours
  • 3-year warranty


 Download the technical document

Photo Gallery

Specifications

Input Voltage

90-305 VAC

IP Rating

IP 65

Rated Power

  • 240 W

Output Voltage

10A

Dimensions

244 x 68 x 38.8mm

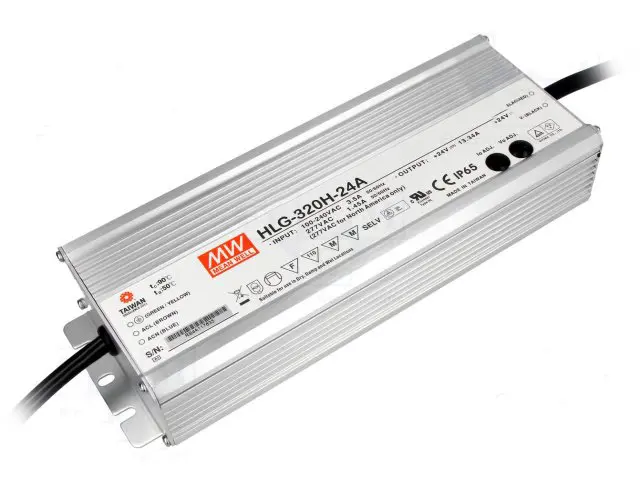

HLG-320H-24V

Features

  • Constant Voltage + Constant Current mode output
  • Metal housing with class I design
  • Built-in active PFC function
  • IP67 / IP65 rating for indoor or outdoor installation
  • Function options: output adjustable via 3 in 1 potentiometer dimming: Timer dimming
  • Typical lifetime 62000 hours
  • 3 year warranty


 Download the technical document

Photo Gallery

Specifications

Input Voltage

90-305 VAC

IP Rating

IP 65

Rated Power

  • 320W

Output Voltage

13.3 A

Dimensions

252 x 90 x 43.8mm
