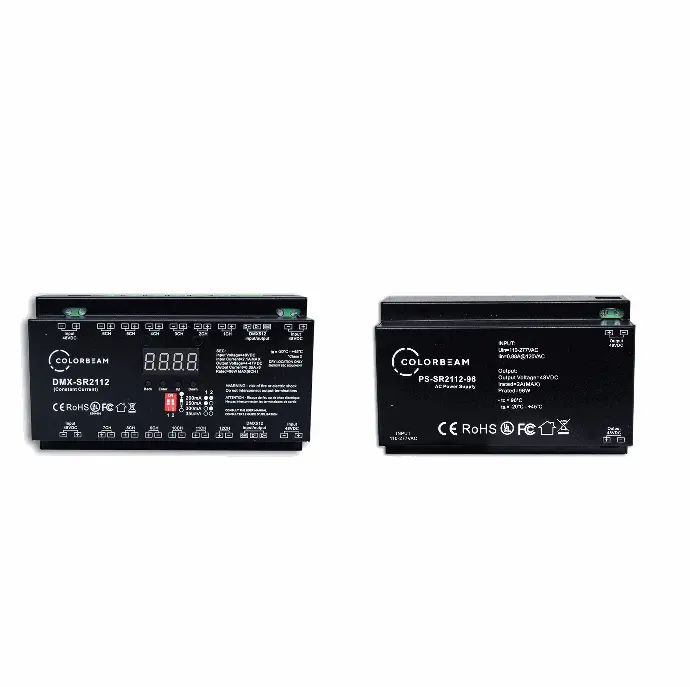

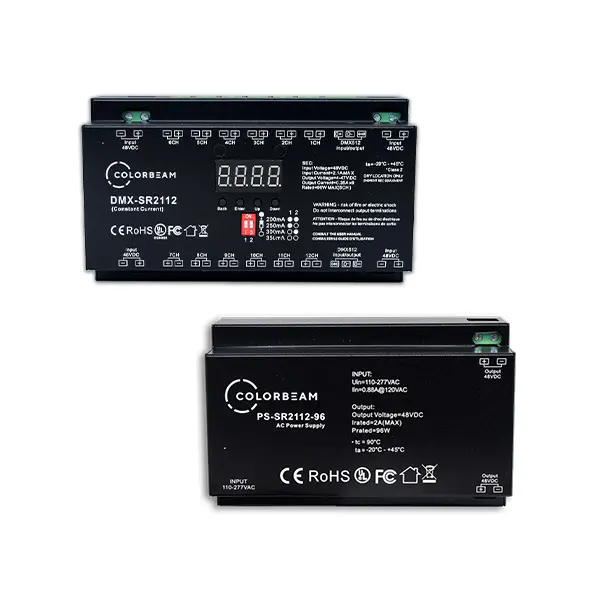

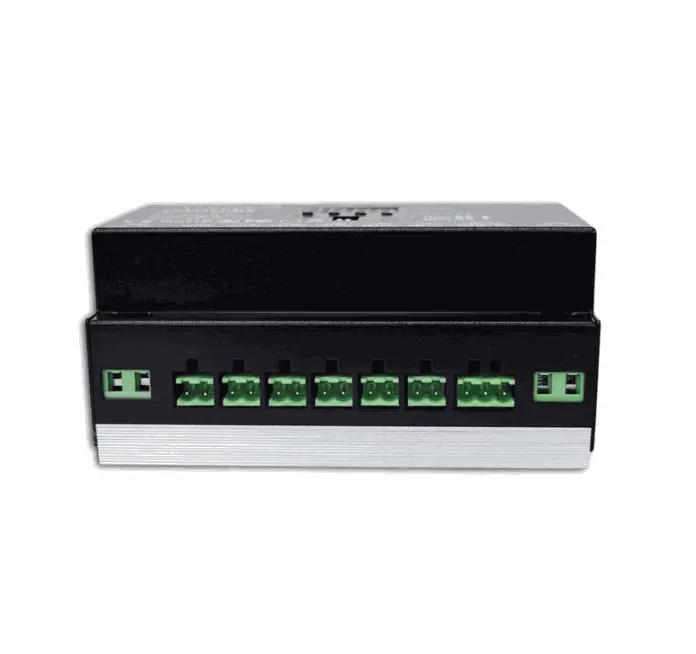

DMX-SR2112 Driver & PS-SR2112-96 Power Supply

Features

  • Constant current DMX decoder, operation current 200mA-350A selectable by DIPs
  • Master & decoder mode, RDM Function
  • Metal housing, digital display to show data directly, easily to set and show DMX address
  • Total 12PWM output channels, DMX channel quantity 1CH 12CH settable
  • PWM Output resolution ratio 8bit, 16bit settable
  • Output PWM frequency from 500HZ - 30,000 HZ settable
  • Output dimming curve gamma value from 0.1-0.9 settable
  • Decoding mode settable
  • Galvanic isolation

 Download the technical document

Photo Gallery

Specifications

Input Voltage

48 VDC

Rated Output Power

12x8.8W, 12x11W, 12x13.2W, 12x14.7W

Dimensions

  • 139x88x66.2mm

Current

  • Constant

Output Voltage

18W, 24V

Output Current

12x200mA,12x250m, A12x300m, A12x350mA

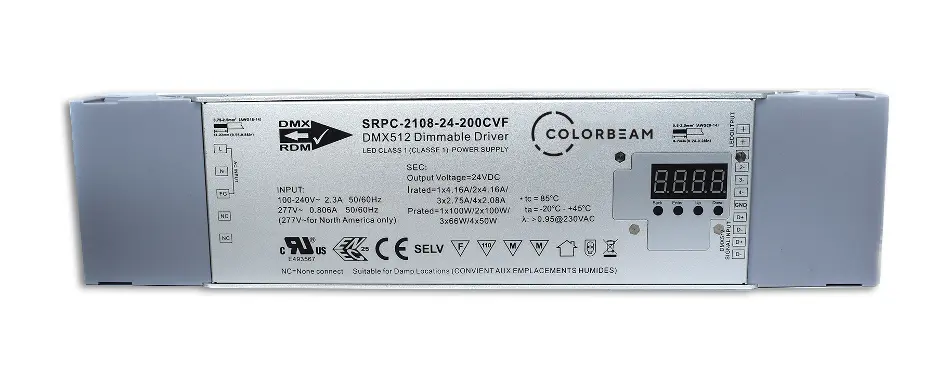

DRV-SRPC2108-24-200CVF


Features

  • Master & decoder mode, DMX/RDM dimming interface
  • Dimmable LED driver with rectangle metal case
  • 4 channels 24VDC constant voltage output
  • Class 1 power supply, full isolated metal case
  • Built-in two-stage active PFC function
  • PF > 0.98, Efficiency > 93%
  • Low standby power < 1W
  • Enable to set DMX address, DMX channel quantity, PWM output resolution (8 bit or 16 bit)
  • Enable to set PWM output frequency, GAMMA ray dimming curve value and DMX decoding mode
  • DMX512(2008), DMX512-A and RDM V1.0 (E1.20 – 2006 ESTA Standard)
  • Compliant with Safety Extra Low Voltage standard
  • Short circuit, overload, over-temperature protection
  • IP20 rating, suitable for indoor LED lighting applications
  • 3-year warranty


Download the technical document

Photo Gallery

Specifications

Channels

4

Power Supply

Internal

Output Voltage

24 VDC

Total Output

Max 200W

Dimensions

  • 270 x 79 x 39 mm

Working Temperatures

  • -20°C+45°C

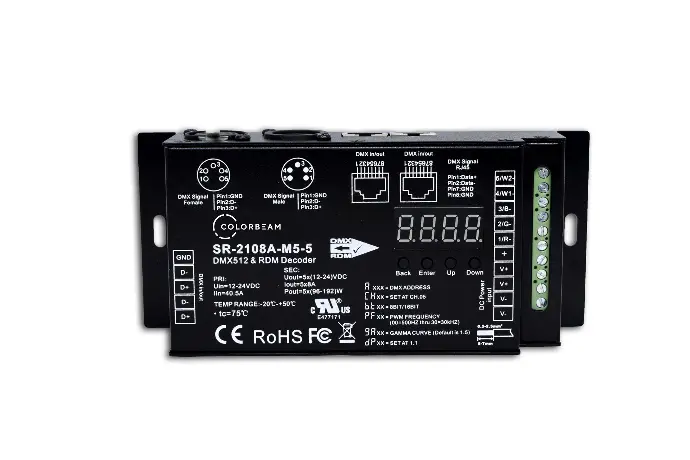

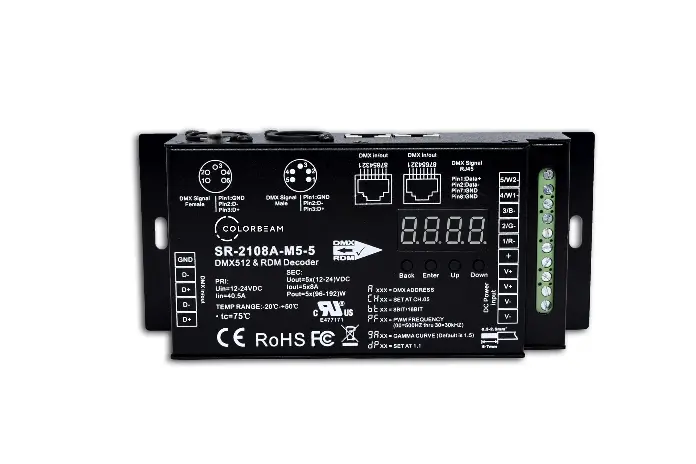

Features

  • SR-2108-M5-5 decoder, RDM function can realize intercommunication between DMX master and decoder; you can set DMX decoder’s address with DMX master console
  • Multiple DMX IN/OUT ports: RJ45, XLR5, 5 pin terminal block
  • Total 5 PWM output channels, common anode. DMX channel quantity from CH1-CH5 settable.
  • PWM output resolution ratio 8bit, 16bit settable.
  • Output PWM frequency from 500 HZ / 30K HZ settable.
  • Output dimming curve gamma value varies from 0.1 /9.9 settable
  • Decoding mode settable


Download the technical document

Photo Gallery

Specifications

Channel

72 LEDs/m

Total Output

Max. 40.5A

Working Temperature

331 lm

Power Supply

External

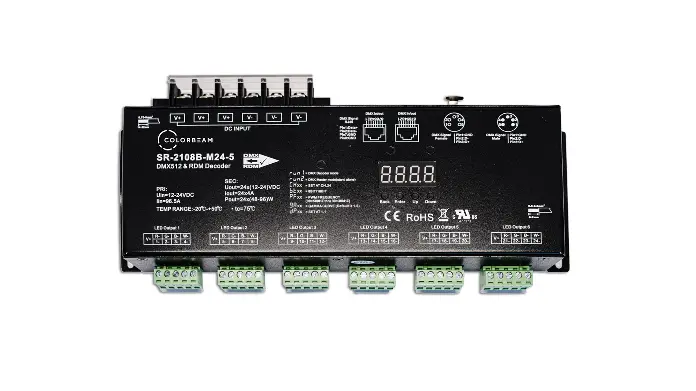

SR-2108B-M24-5

Features

  • Master & decoder mode, DMX/RDM dimming interface
  • Dimmable LED driver with rectangle metal case
  • 4 channels 24VDC constant voltage output
  • Class 1 power supply, full isolated metal case
  • Built-in two-stage active PFC function
  • PF > 0.98, Efficiency > 93%
  • Low standby power < 1W
  • Enable to set DMX address, DMX channel quantity, PWM output resolution (8 bit or 16 bit)
  • Enable to set PWM output frequency, GAMMA ray dimming curve value and DMX decoding mode
  • DMX512(2008), DMX512-A and RDM V1.0 (E1.20 – 2006 ESTA Standard)
  • Compliant with Safety Extra Low Voltage standard
  • Short circuit, overload, over-temperature protection
  • IP20 rating, suitable for indoor LED lighting applications
  • 3-year warranty


Download the technical document

Photo Gallery

Specifications

Channels

24

Power Supply

External

Dimensions

264.5 X 83 X 42mm

Total Output

Max. 96A
