    A repository of all spec sheets and technical documents for our products.


    Decoder Types

    24v

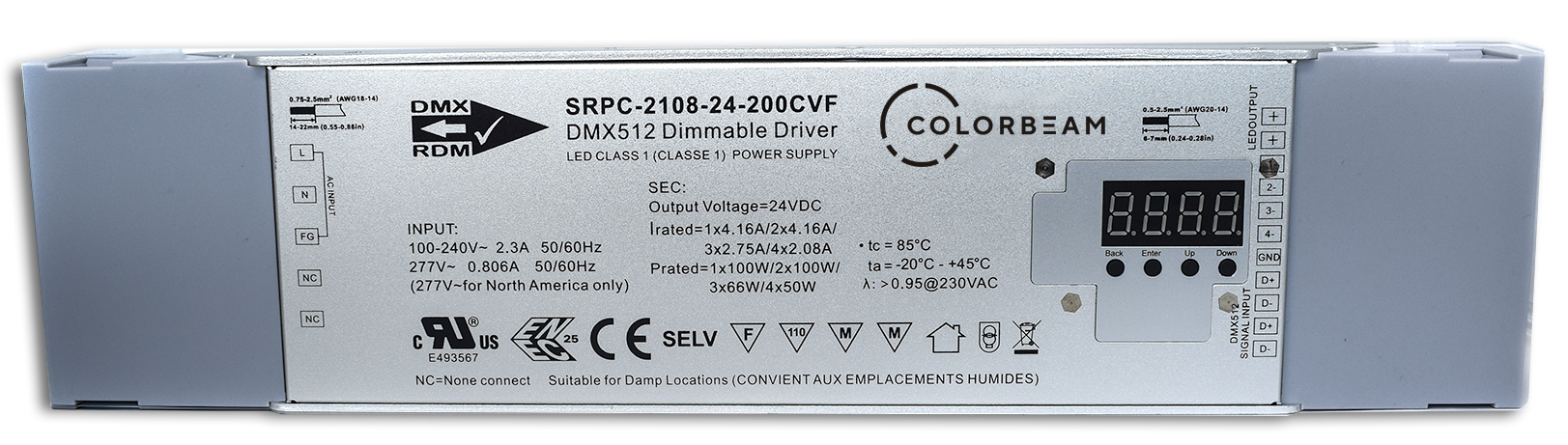

    DRV-SRPC2108-24-200CVF

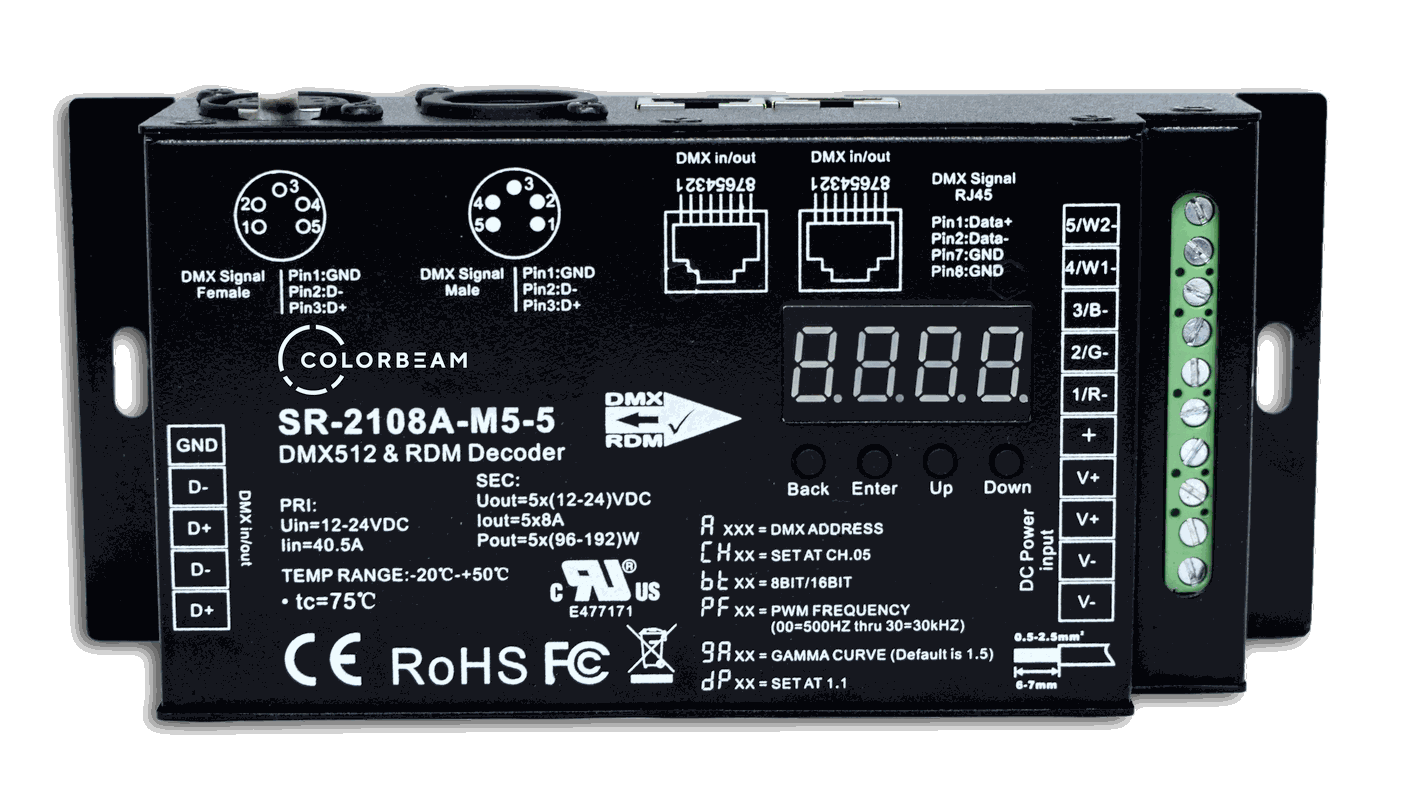

    SR-2108-M5-5 + external power supply



    SR-2108-M5-24 + external power supply




    48v

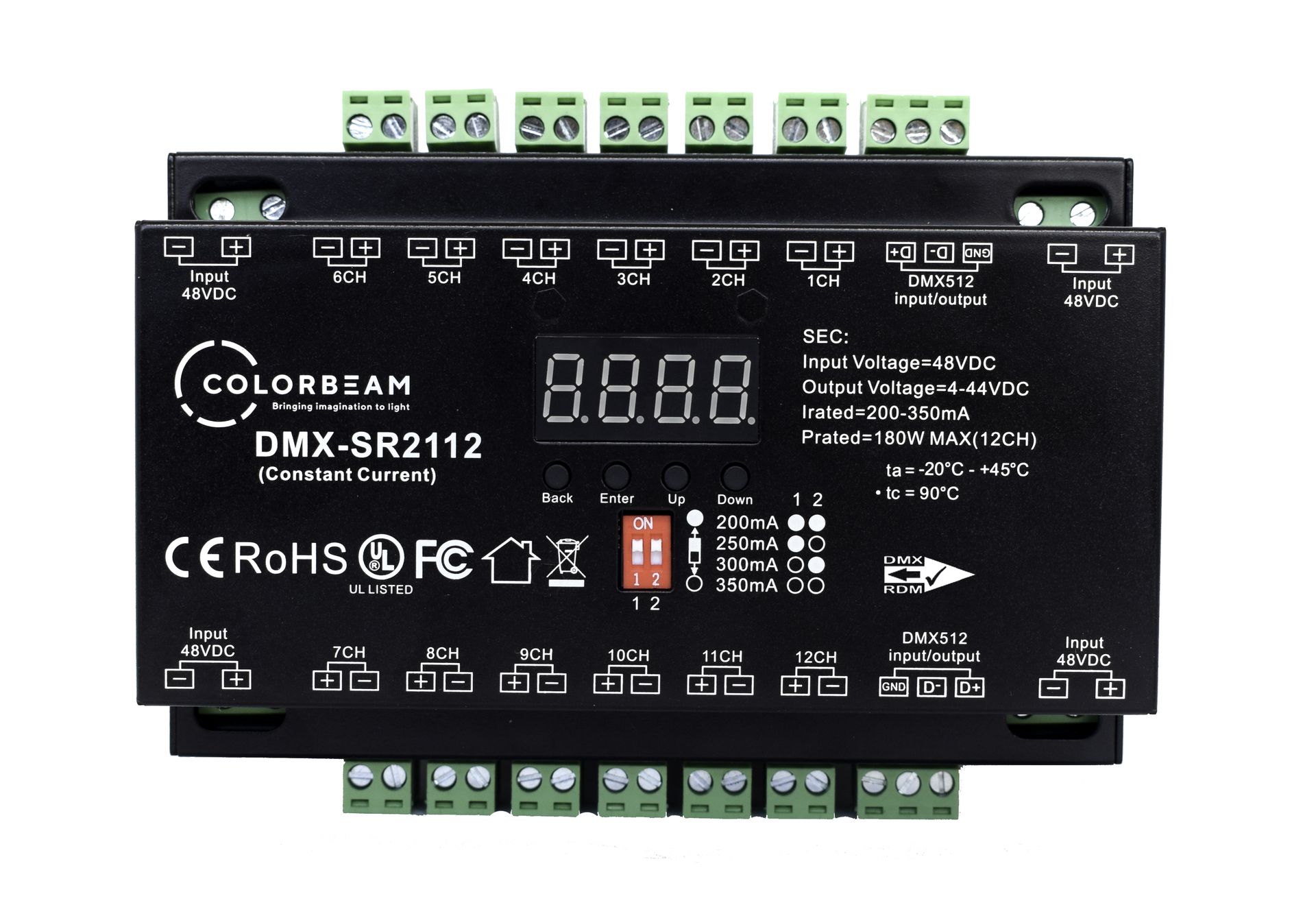

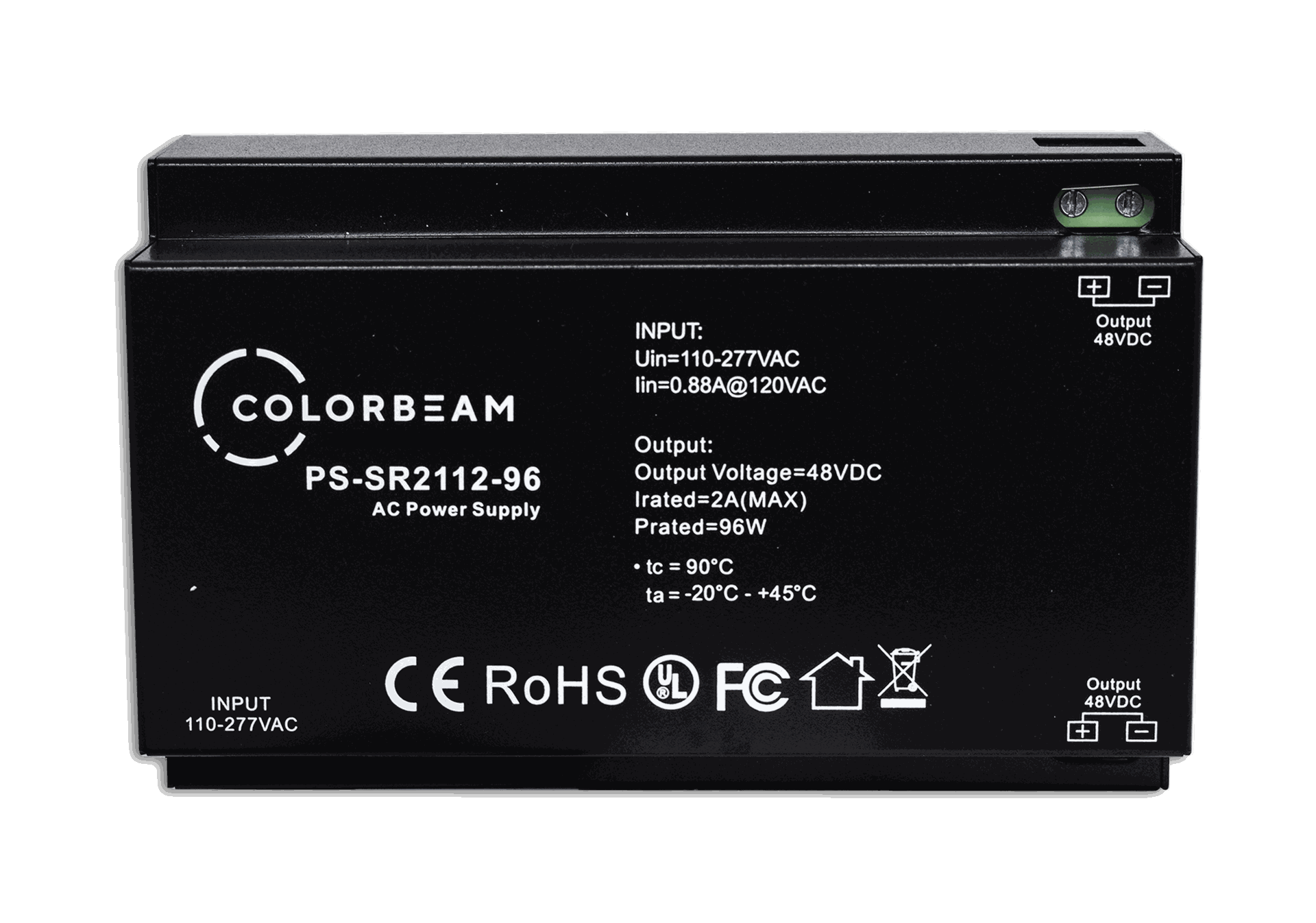

    DMX-SR2112 + PS-SR2112-96



    When connecting two PS-SR2112-96 units,

    • Connect one to the top and one to the bottom of the DMX-SR2112
    • Set the side switch on the DMX-SR2112 to “2 PS”

    This ensures even current distribution and maintain UL certification.



    Product Compatibility Charts

    Indoor Lighting

    SeriesTypeCable RequiredCompatible Decoder
    Bianca16w CCTCAT5 / CAT6SR2112
    T9w CCTCAT5 / CAT6SR2112
    TB10w RGBW
    14w CCT    		CAT5 / CAT6SR2112
    S9w CCT
    10w RGBW
    14w CCT
    		CAT5 / CAT6SR2112
    VB110w RGBW
    14w CCT    		CAT5 / CAT6SR2112
    VB210w RGBW
    14w CCT    		CAT5 / CAT6SR2112
    V19w CCT
    16w CCT
    20w RGBW    		CAT5 / CAT6SR2112
    V29w CCT
    16w CCT
    20w RGBW    		CAT5 / CAT6SR2112
    C16w CCT
    20w RGBW    		CAT5 / CAT6SR2112
    VENUS16w CCTCAT5 / CAT6SR2112
    LUNA10w RGBW
    14w CCT    		CAT5 / CAT6SR2112
    MR9w CCTCAT5 / CAT6SR2112
    DUOMO CCT3FT
    4FT
    5FT    		3-conductorSRPC2108/ SR-2108
    DUOMO RGBW3FT
    4FT
    5FT    		5-conductorSRPC2108/ SR-2108
    Skylight2×4
    2×2    		120v wiringn/a


    Outdoor Lighting

    SeriesTypeCable RequiredCompatible Decoder
    Balzo V19w CCT
    10w RGBW    		8-conductorSR2112
    Balzo V310w RGBW
    14w CCT
    		8-conductorSR2112
    Balzo LG9w CCT
    10w RGBW    		8-conductorSR2112
    Palma9w CCT8-conductorSR2112
    Palma L9w CCT8-conductorSR2112
    TEGA-IN10w RGBW
    14w CCT    		8-conductorSR2112
    TEGA-IN-19w CCT
    10w RGBW    		8-conductorSR2112
    TEGA-DR9w CCT
    10w CCT    		8-conductorSR2112
    ROMASingle Color – 3000K2-conductorSRPC2108/ SR-2108
    FL1 2700KSingle Color – 2700K2-conductorSRPC2108/ SR-2108
    FL1 RGBWRGBW5-conductorSRPC2108/ SR-2108
    FL2 2700KSingle Color – 2700K2-conductorSRPC2108/ SR-2108
    FL2 RGBWRGBW5-conductorSRPC2108/ SR-2108
    LLS RGB2FT
    4FT    		4-conductorSRPC2108/ SR-2108
    LLS RGBW2FT
    4FT    		5-conductorSRPC2108/ SR-2108
    GAIASingle Color – 3000K2-conductorSRPC2108/ SR-2108
    MAYAWS-3000K
    PT-3000K    		2-conductorSRPC2108/ SR-2108


    Linear Lighting

    SeriesTypeCable RequiredCompatible Decoder
    TAPE-60Single Color2-conductorSRPC2108/ SR-2108
    RGBW5-conductorSRPC2108/ SR-2108
    NF155-conductorSRPC2108/ SR-2108
    NF215-conductorSRPC2108/ SR-2108
    TAPE-72PX16DMX + 2-conductor3rd Party DMX Processor
    NF165-conductorSRPC2108/ SR-2108
    NF185-conductorSRPC2108/ SR-2108
    TAPE-120Single Color2-conductorSRPC2108/ SR-2108
    CCT3-conductorSRPC2108/ SR-2108
    NF153-conductorSRPC2108/ SR-2108
    NF163-conductorSRPC2108/ SR-2108
    NF183-conductorSRPC2108/ SR-2108
    TAPE-180RGBWW6-conductorSRPC2108/ SR-2108
    TAPE-240RGBW5-conductorSRPC2108/ SR-2108
    TAPE-256CCT3-conductorSRPC2108/ SR-2108
    CCT-R13-conductorSRPC2108/ SR-2108
